Scania-DB9 (16-Pin) Adapter Cable [J1939]

Do you need to log/stream J1939/FMS data from a Scania heavy duty truck?

This 1.5 meter Scania-DB9 16-pin adapter cable fits many Scania vehicles and lets you easily connect your CANedge CAN logger or CANsub CAN interface to start recording J1939 data.

See also our regular J1939-DB9 adapter cable.

When buying a CAN logger/interface you can add this as an option for a 40% discount.

50 EUR
SKU: A049 | in stock | prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.



Fleet Management J1939 WiFi Logger SCANIA

Fits many Scania heavy-duty trucks for plug & play connection

Standard CAN in Automation DB9 STANDARD DB9

Fits our CAN loggers & interfaces (CiA 303-1 DB9 pinouts)

Overmold J1939 Deutsch 9 Pin Connector Adapter OVERMOLDED

Quality overmold ensures top flexibility & durability

Solid Quality Rugged Cable AWG SOLID CABLES

Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness

RoHS Compliant Cable Tested Denmark ROHS

Cables are RoHS compliant and tested in Denmark

1 Year Warranty 1Y WARRANTY

We offer a 1-year warranty on all our products




About the Scania-DB9 (16-pin) adapter cable

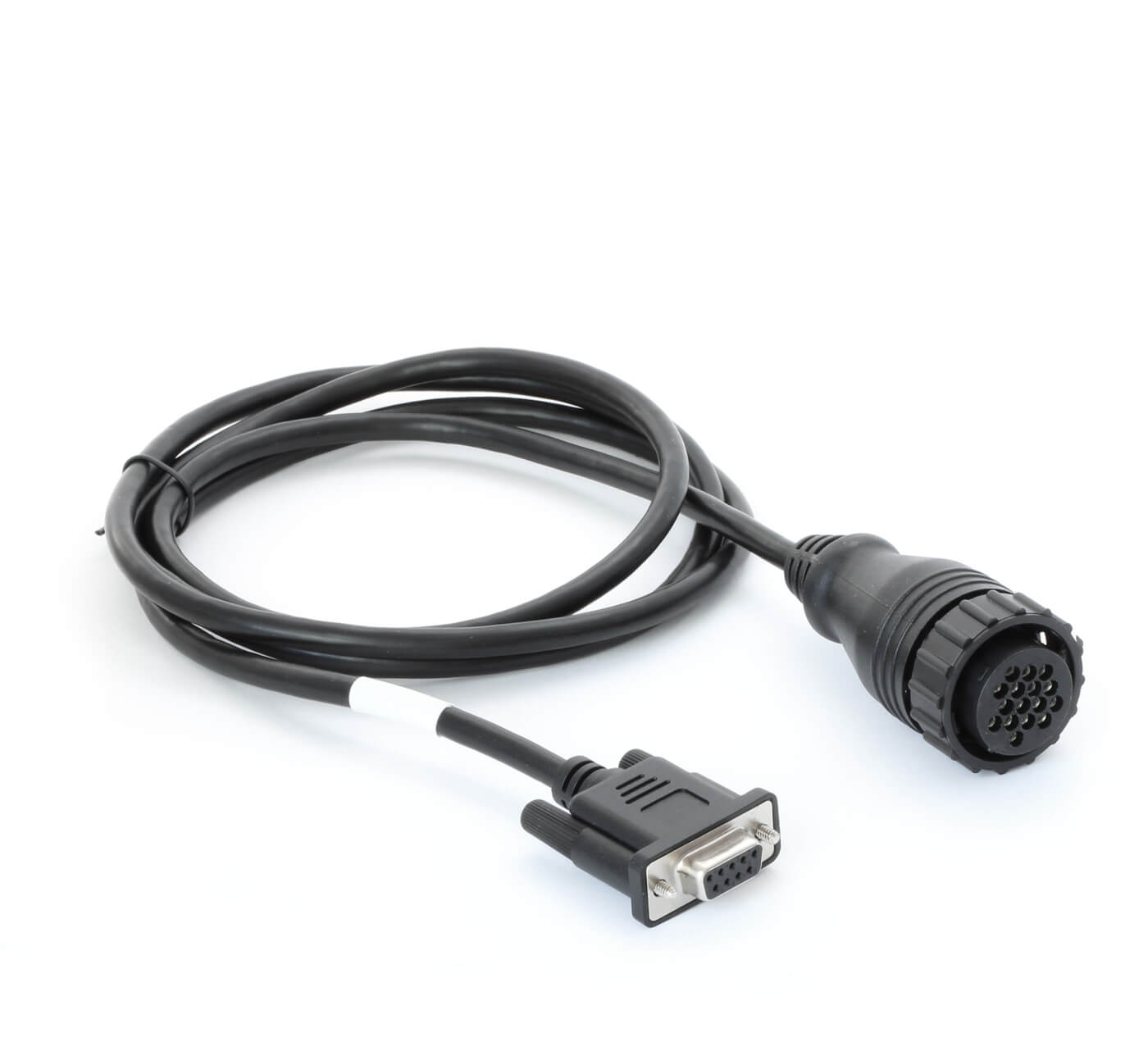

The Scania-DB9 (16-pin) adapter can be used in many Scania heavy duty trucks. The cable is compatible with our CANedge CAN loggers and CANsub CAN interfaces - letting you connect either directly to the CAN bus. Simply locate the 16-pin connector in your vehicle, typically found in the cabin (e.g. behind a panel).

Need to use this with a CANsub.4/CANmod.router? See our DB25-4xDB9 adapter cable.

For more on J1939, check out below guides:

use cases
Scania J1939 Data




Check out our tech specs, use cases - or buy now!

Do you have any questions?

Contact us

GENERAL
Adapter Cable Length 150 cm
Adapter DB9 Pins In accordance with CiA 303-1
Compatibility High Speed CAN Bus (ISO 11898-2) incl. e.g. CAN FD, SAE J1939, NMEA 2000
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) female to Scania 16-pin (female)
Temperature Operating temperature: -20degC to +80degC
Weight 150G



Scania-DB9 (16-pin) adapter pinout


Scania Function DB9
9 CAN 1 L 2
5 CAN 1 H 7
1 VCC 9
2 GND 3
Scania 16-pin connector pinout

Below are use cases examples where the Scania-DB9 (16-pin) adapter is useful:

SAE J1939 DB9 Connector Adapter Truck Heavy Duty

Heavy-duty fleet telematics

Need to log J1939 data from a fleet that includes Scania vehicles?

In mixed heavy-duty vehicle fleets, some Scania models may be fitted with the 16-pin Scania connector. In such cases, the simplest way to record J1939 data with your CAN logger is to connect it directly to the CAN bus via this adapter cable. This way, you automatically start logging all broadcasted raw J1939 data from the vehicle - allowing you to easily get started with J1939 data logging and telematics.



Real-time J1939 diagnostics via CANsub

Need to stream J1939 data live from Scania trucks for in-field diagnostics?

Connect the Scania-DB9 (16-pin) adapter cable to a CANsub.2/CANsub.4 via USB or Ethernet. Field technicians can then open webCAN in their browser - with zero installation - to stream raw J1939 data live from the Scania CAN bus. With the J1939 DBC loaded, webCAN DBC decodes the frames on the fly into named signals (incl. automatic J1939 TP reassembly for multi-packet messages like DM1) - ideal for rapid in-field troubleshooting and diagnostics on Scania heavy-duty trucks.

Real-time J1939 streaming from Scania truck via CANsub and webCAN
