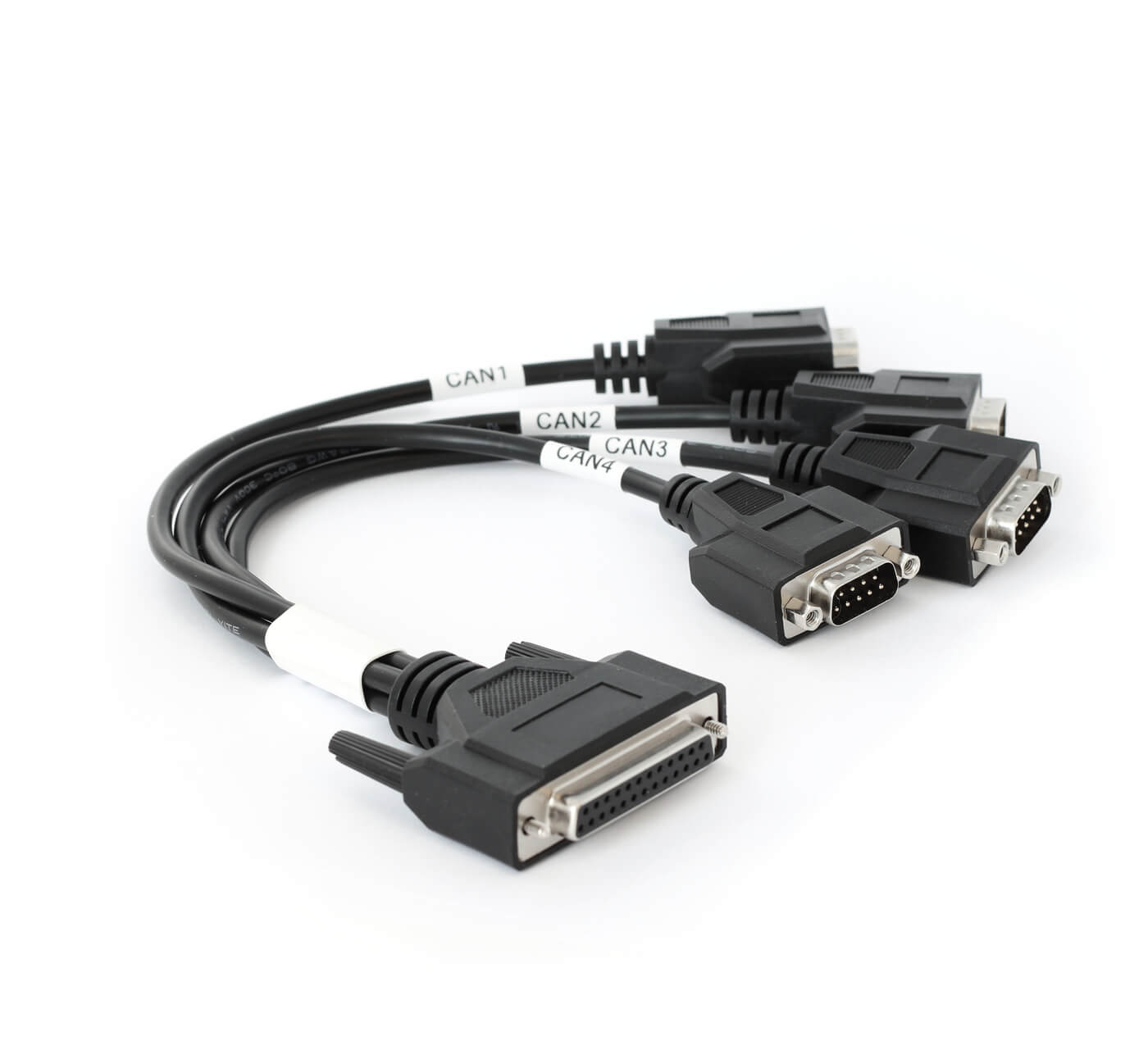

DB25-to-4x-DB9: 4 x CAN bus adapter cable

DB25-to-4x-DB9: 4 x CAN Adapter

Need to connect 4 x CAN buses to your CANmod.router or CANsub.4?

The CANmod.router lets you receive/transmit CAN traffic from/to 4 x CAN via 1 x CAN - serving as a powerful CAN bus gateway, or 'CAN extender' for your CANedge.

The CANsub.4 is a pro specs 4 x CAN-USB/Ethernet interface for streaming CAN data in real-time.

This DB25-to-4x-DB9 adapter cable lets you directly connect up to 4 x CAN to the CANmod.router / CANsub.4 using our standard DB9 adapter cables.

You can add this as an option when purchasing a CANmod.router or CANsub.4.

50 EUR
SKU: A040 | in stock | prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.


GENERAL
Adapter Cable Length 20 cm
Connectors DB25 (female), 4 x DB9 (male)
Temperature Operating temperature: -20degC to +80degC
Weight 210G
Color Black



Adapter pinout


DB25 (female) Function DB9 CAN-S1 DB9 CAN-S2 DB9 CAN-S3 DB9 CAN-S4
1 CAN-S4 H 7
2 CAN-S4 L 2
14 CAN-S4 GND 3
18 CAN-S3 H 7
17 CAN-S3 L 2
5 CAN-S3 GND 3
22 CAN-S2 H 7
21 CAN-S2 L 2
9 CAN-S2 GND 3
12 CAN-S1 H 7
13 CAN-S1 L 2
25 CAN-S1 GND 3
