OBD2 DB9 adapter cable

OBD2-to-DB9 Adapter Cable [Cars, Trucks, Buses]

Need to log OBD2 or CAN bus data from your car, truck or bus?

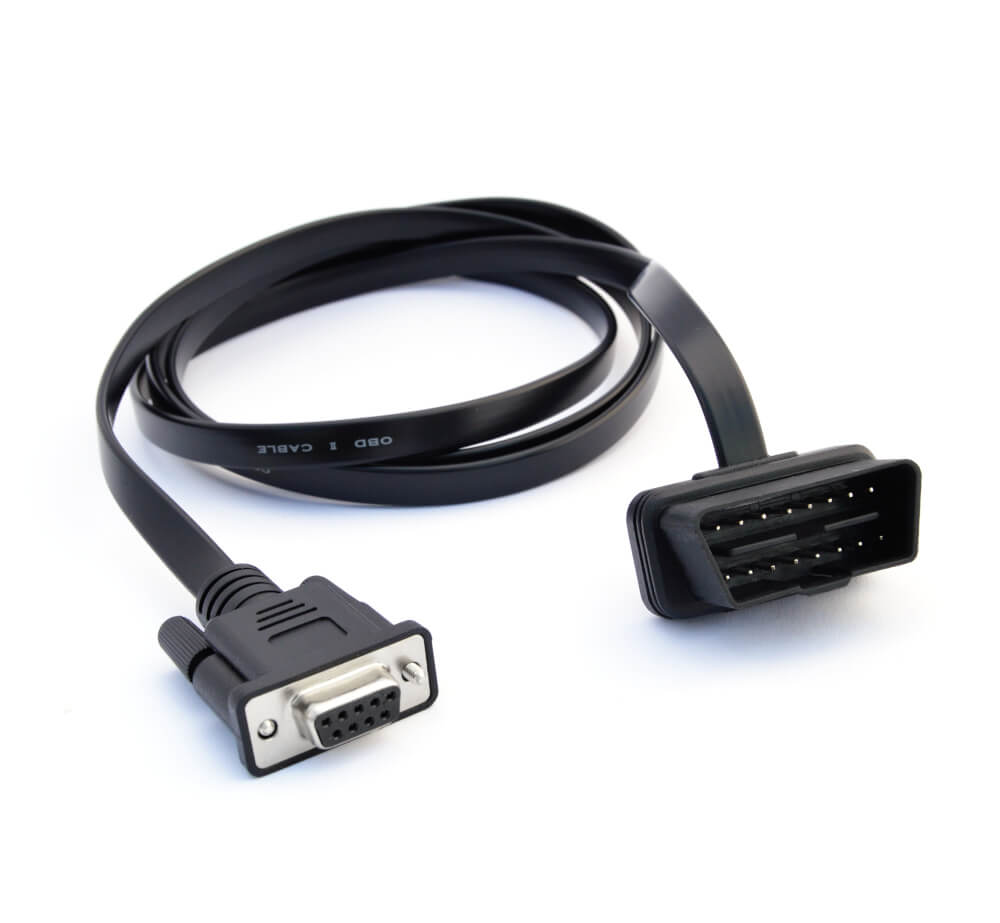

This 1.5 meter OBD2-DB9 adapter cable fits the connector found near your car's steering wheel and lets you easily connect a CANedge/CLX000 CAN logger to start recording OBD2/CAN data.

When buying a CAN logger you can add this as an option for a 40% discount.

Regular price
50 EUR
Unit price
per
In stock | Prices ex VAT | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.




Car Data OBD2 Logger Cable Adapter
CAR READY

Fits your car's on board diagnostic connector (below steering wheel)

OBD2 FMS Truck Ready Heavy Duty
TRUCK READY

Type B - center pin hole enables use in 24V vehicles (e.g. trucks)

Flexible OBD2 Adapter Cable
SMALL

Flat connector head for easy installation in tight areas

Solid Quality Rugged Cable AWG
SOLID CABLES

Rugged quality 1.5m cable with overmolded DB9 connector

RoHS Compliant Cable Tested Denmark
ROHS

Cables are RoHS compliant and tested in Denmark

1 Year Warranty
1Y WARRANTY

We offer a 1-year warranty on all our products




About the DB9-OBD2 adapter

The DB9-OBD2 adapter cable is used in passenger vehicles - incl. cars, taxis, light duty vehicles etc. It's also sometimes used heavy duty vehicles (trucks, buses, ...). The cable lets you connect your CAN logger directly to the CAN bus.

To install, simply locate the OBD2 16-pin connector near your steering wheel - see also this location guide page.

See also our OBD2 intro and OBD2 logger articles.

use cases
OBD2 Connector 16 Pin Car Data




Check out our use cases, FAQ - or buy now!

Do you have any questions?

Contact us

GENERAL
Adapter Cable Length 150 cm
Adapter DB9 Pins In accordance with CiA 303-1
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) female to OBD2 16-pin
Type Type B (hole in center pin enables use in e.g. vans/trucks)
Temperature Operating temperature: -20degC to +80degC
Weight 140G
Color Black



Adapter pinout


DB9 (female) Function OBD2
1 N/C
2 CAN-L 14
3 GND 4
4 N/C
5 N/C
6 N/C
7 CAN-H 6
8 N/C
9 VCC 16
OBD2 Adapter Pinout Connector Cable

Below are two use cases examples where the OBD2-DB9 adapter is useful:

Prototype Vehicle Fleet Field Logging OBD2

Vehicle fleet telematics

Need to log OBD2 data from a car fleet?

If you need to e.g. record data from a fleet of prototype cars for late stage field testing, the OBD2-DB9 adapter provides a simple way to connect your CAN logger. With direct access to the CAN bus, you can e.g. set up a CANedge2 to request OBD2 data, record raw CAN bus data - and send it all via a USB 3G/4G hotspot.

Vehicle reverse engineering

Need to reverse engineer the CAN bus of your car?

If you want to truly understand your vehicle, you'll often need to reverse engineer the proprietary raw CAN bus data. Here, the OBD2-DB9 adapter offers an easy way to connect your CAN logger to your car. Once powered, you can connect the CLX000 to your PC via a standard mini USB to start streaming data in Wireshark. This way you're ready to hack your car in just a few minutes!

Reverse Engineer Vehicle CAN Bus OBD2



This differs from vehicle-to-vehicle:

In some cars, the power supply will be turned off when you turn off the ignition (or a few seconds/minutes after), while in others the device will be powered also when the vehicle is off.

The latter case is not an issue if you're only recording CAN bus data from the car. However, if you're requesting OBD2 data it may wake up the ECUs, causing faster battery drainage. In such cases, consider disconnecting the device - or use a control signal trigger to turn the OBD2 requests on/off (CANedge only).
