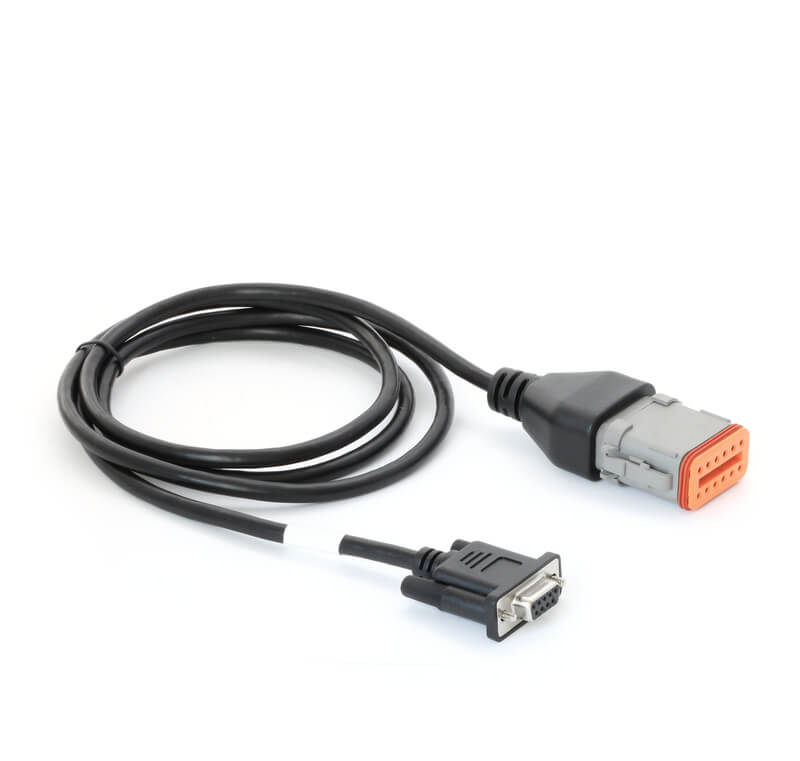

Komatsu-DB9 (12-Pin) Adapter Cable [J1939]

Komatsu-DB9 (12-Pin) Adapter Cable [J1939]

Do you need to log/stream J1939 data from a Komatsu heavy duty truck?

This 1.5 meter Komatsu-DB9 12-pin adapter cable fits many Komatsu vehicles and lets you easily connect your CANedge CAN logger or CANsub CAN interface to start collecting J1939 data.

See also our regular J1939-DB9 adapter cable.

When buying a CAN logger/interface you can add this as an option for a 40% discount.

50 EUR
SKU: A050 | in stock | prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.



Fleet Management J1939 WiFi Logger Komatsu

Fits many Komatsu heavy-duty trucks for plug & play connection

Standard CAN in Automation DB9 STANDARD DB9

Fits our CAN loggers & interfaces (CiA 303-1 DB9 pinouts)

Overmold J1939 Deutsch 9 Pin Connector Adapter OVERMOLDED

Quality overmold ensures top flexibility & durability

Solid Quality Rugged Cable AWG SOLID CABLES

Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness

RoHS Compliant Cable Tested Denmark ROHS

Cables are RoHS compliant and tested in Denmark

1 Year Warranty 1Y WARRANTY

We offer a 1-year warranty on all our products




About the Komatsu-DB9 (12-pin) adapter cable

The Komatsu-DB9 (12-pin) adapter can be used in many Komatsu heavy-duty trucks, e.g. various mining vehicles. The cable is compatible with our CANedge CAN loggers and CANsub CAN interfaces - letting you connect either directly to the CAN bus. Simply locate the 12-pin connector in your vehicle, typically found in the cabin (sometimes behind a panel).

Need to use this with a CANsub.4/CANmod.router? See our DB25-4xDB9 adapter cable.

For more on J1939, check out below guides:

use cases
Komatsu J1939 Data




Check out our tech specs, use cases - or buy now!

Do you have any questions?

Contact us

GENERAL
Adapter Cable Length 150 cm
Adapter DB9 Pins In accordance with CiA 303-1
Compatibility High Speed CAN Bus (ISO 11898-2) incl. e.g. CAN FD, SAE J1939, NMEA 2000
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) female to Komatsu 12-pin (female)
Temperature Operating temperature: -20degC to +80degC
Weight 150G



Komatsu-DB9 (12-pin) adapter pinout


Komatsu Function DB9
10 CAN 1 L 2
3 CAN 1 H 7
1 VCC 9
12 GND 3


Below are use cases examples where the Komatsu-DB9 (12-pin) adapter is useful:

Komatsu Truck Telematics

Heavy-duty fleet telematics

Need to log J1939 data from a fleet that includes Komatsu vehicles?

In mixed heavy-duty vehicle fleets, some Komatsu models may be fitted with the 12-pin Komatsu connector. In such cases, the simplest way to record J1939 data with your CAN logger is to connect it directly to the CAN bus via this adapter cable. This way, you automatically start logging all broadcasted raw J1939 data from the vehicle - allowing you to easily get started with J1939 data logging and telematics.



Wireless field diagnostics via CANsub

Need to give your field technicians easy access to the CAN bus of Komatsu vehicles?

Pair the Komatsu-DB9 (12-pin) adapter cable with a CANsub.2/CANsub.4 and a WiFi router on the machine. Field technicians with WiFi access can then open webCAN wirelessly in their browser (zero installation required) to stream and DBC decode J1939 data for in-field diagnostics. Combined with this dedicated Komatsu adapter cable, you get a plug & play setup for accessing the CAN bus across your Komatsu fleet without having to send anyone into the cab.

Wireless field diagnostics on Komatsu vehicles via CANsub and webCAN
