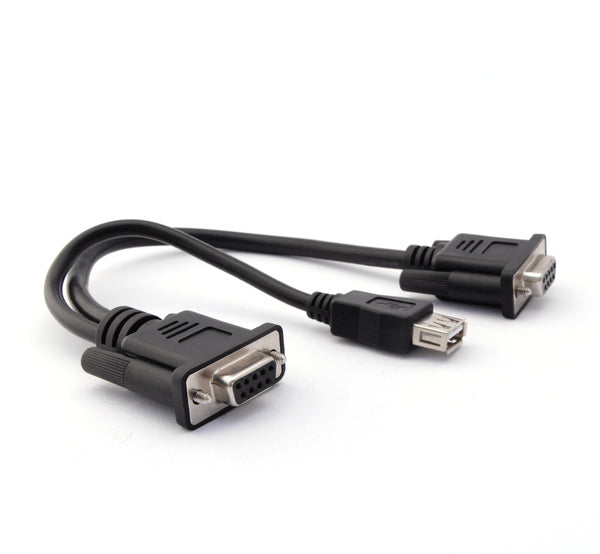

DB9 to DB9 and USB adapter cable

DB9-DB9/USB Adapter Cable

Need to log 2 x CAN/LIN data - while powering a 3G/4G USB WiFi router?

With this adapter, your CANedge2 can power a 3G/4G USB WiFi router via the 2nd port - simplifying field deployments.

At the same time, the DB9 female connector makes it easy to connect a CANmod sensor module - e.g. a CANmod.gps.

You can also use this to easily log 2 x CAN/LIN channels while powering a USB hotspot.

Buy now - or read more below!

Regular price
30 EUR
Unit price
per
In stock | Prices ex VAT | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.




Power 3G/4G USB hotspot
EASY 3G/4G

Power a USB 3G/4G hotspot via the CANedge2 2nd port connector

CANmod sensor to CAN bus module telematics
MODULES

Easily connect a CANmod module along with a USB hotspot

2 x HS dual channel CAN bus logger
2X CAN/LIN

Easily log 2 x CAN/LIN while powering a USB hotspot

Flexible CAN logger mounting
FLEXIBLE

The cable enables flexible installation in e.g. mounting brackets

Solid Quality Rugged Cable AWG
OVERMOLDED

Overmold quality adapter cable with 22 AWG (0.5 mm2) thickness

Lock Cables with Screws
SOLID LOCKS

DB9 screw locks ensure a solid connection




About the DB9-DB9/USB

The CANedge2 provides a configurable 5V power output via the 2nd port. This adapter lets you use this to easily power a 3G/4G USB WiFi router via this 5V output - simplifying cellular deployment use cases.

Additionally, the adapter provides an open DB9 female connector, making it easy to connect a CANmod sensor-to-CAN module. The cable provides a 5V power supply for the CANmod - while enabling the CAN communication from the CANmod to be recorded by the CANedge2 via the 2nd port.

You can of course easily combine this adapter with our DB9-DB9/DB9 Y-splitter to e.g. daisy chain CANmod modules.

Note: The connection to the USB adapter purely provides power and ground for the USB hotspot (the CANedge2 connects to the 3G/4G router via WiFi, not through the cable).

use cases
CANedge2 DB9 USB Adapter Cable CANmod




CANedge2 Dual CAN Telematics

2 x CAN/LIN telematics

The DB9-DB9/USB adapter also makes it easy to power a 3G/4G USB WiFi router - while simultaneously recording 2 x CAN/LIN channels via the CANedge2. By adding a gender changer, you can easily use any of our standard adapter cables on both channels of the CANedge2.

Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us

GENERAL
Power supply The CANedge2 provides a configurable fixed 5V supply output
Adapter Cable Length 20 cm per split cable (incl. connector heads)
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) female to 9-pin D-sub (DB9) female and USB A female
Temperature Operating temperature: -20degC to +80degC
Weight 60G



Adapter pinout


DB9
(female 1)
Function DB9
(female 2)
USB A
(female)
1 VCC (Power) 1 USB pin 1
2 CAN-L 2
3 GND 3 USB pin 4
4 4 N/C
5 N/C N/C
6 GND (optional) 6 USB pin 4
7 CAN-H 7 N/C
8 N/C N/C
9 9 N/C

Below are some examples where a DB9-DB9/USB adapter can be useful - see also the CANedge2 or DB9-USB:

Vehicle Telematics CAN Bus GPS OBD2 Cloud Telematics Dashboard

On-road telematics with CAN + GNSS/IMU data

Need to upload CAN bus and GNSS/IMU data via 3G/4G?

The CANedge2 can upload data while on-the-road using e.g. a 3G/4G USB router. You can power the 3G/4G hotspot from the vehicle - or use our DB9-DB9/USB adapter to power both the hotspot and CANmod.gps via the 2nd port of the CANedge2. The uploaded log files can e.g. be visualized in telematics dashboards. Ideal for e.g. OEM field testing, car fleet telematics, predictive maintenance and more.




Yes, any USB WiFi router that can operate at 5V DC can be powered by the 2nd port 5V output from the CANedge2 via this adapter.


Many sensor-to-CAN modules can be powered via 5V power supply - making it very easy to connect these to the CANedge2 2nd port. Our CANmod sensor modules are specifically designed to be plug & play with the CANedge by using this power supply (and a matching pin-out).

You can connect practically any 3rd party sensor module that broadcasts data via CAN bus, as long as the module can be powered via 5 V DC. Of course, you need to determine what pin-out the external sensor module uses and ensure that you connect it using a suitable adapter cable.
