DB9 Y Splitter Adapter Cable

DB9-DB9/DB9 - Y-Splitter (1x Male & 2x Female)

Need to split your CAN bus?

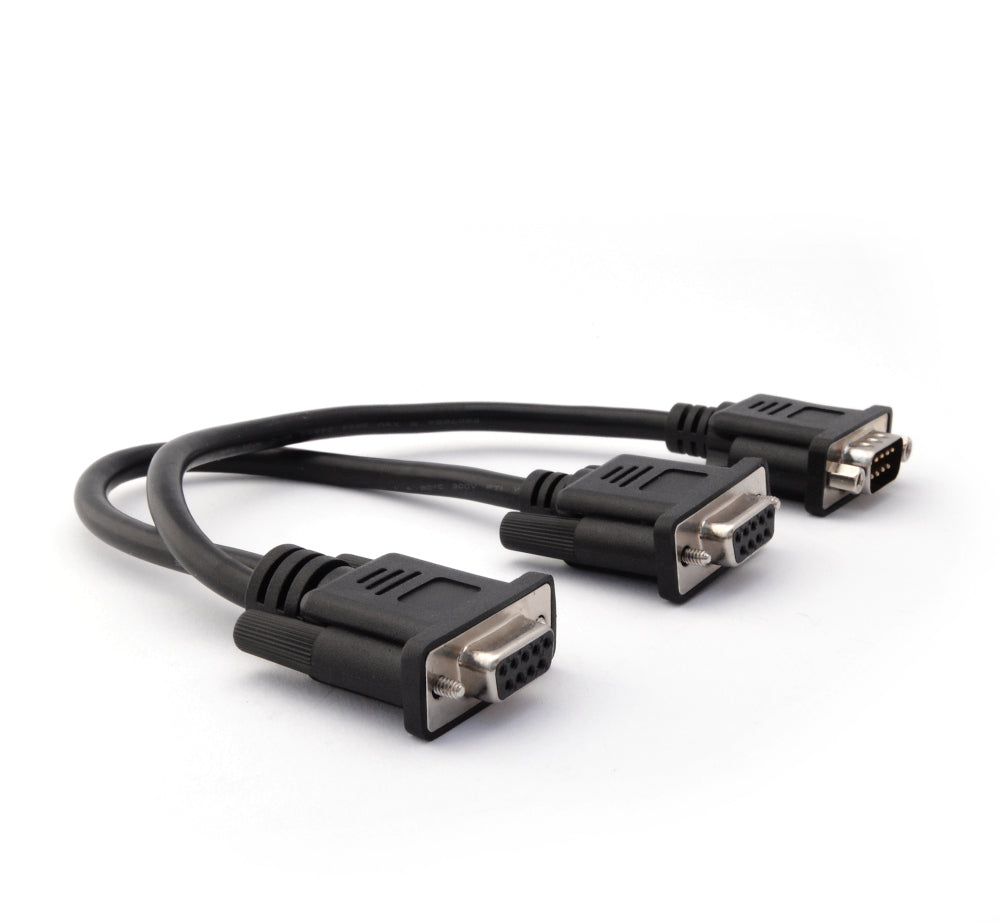

This low cost DB9 (D-sub 9) Y-splitter cable lets you easily split a single CAN bus DB9 connector into two connectors. This is achieved via the quality overmolded male-to-female/female DB9 connectors.

The DB9-DB9/DB9 adapter is ideal for connecting multiple CAN devices to a single port - or e.g. daisy chaining CAN modules.

Buy now - or learn more below!

Regular price
30 EUR
Unit price
per
In stock | Prices ex VAT | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.




Solid Quality Rugged Cable AWG
SOLID QUALITY

Rugged quality adapter cable with 22 AWG (0.5 mm2) thickness

Non Terminated Large CAN Bus Systems
COMBINE

Non-terminated and can be combined with other adapters

Flexible DB9 Splitter Use Cases
FLEXIBLE

Open up multiple use cases with the flexibility of an Y-splitter

Lock Cables with Screws
SOLID LOCK

DB9 screw locks ensure a solid connection

Standard CAN in Automation DB9
STANDARD DB9

Works with most CAN bus adapters (CiA 303-1 compatible)

1 Year Warranty
1Y WARRANTY

We offer a 1-year warranty on all our products




About the DB9 Y-splitter

The DB9 Y-splitter lets you easily extend and branch out your CAN bus to e.g. add additional CAN nodes.

The adapter is e.g. useful if you need to daisy chain multiple modules together - or provide access for multiple devices through a single CAN bus port.

use cases
DB9 Y splitter adapter cable CAN bus



Example: Dual CAN telematics

The DB9-Y-splitter is e.g. often used in J1939 use cases to let you log data via both Channel 1 and 2 of a CANedge - while at the same time connecting an external module like the CANmod.gps or CANmod.temp.





Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us

GENERAL
Adapter Cable Length 25 cm
Adapter Pins In accordance with CiA 303-1
Compatibility High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) male-to-female and female
Temperature Operating temperature: -20degC to +80degC



Adapter pinout


DB9 (female 1) Function DB9 (male) DB9 (female 2)
1 5V Supply Output (CANedge) 1 1
2 CAN-L 2 2
3 GND 3 3
4 LIN Data 1 (CANedge) 4 4
5 N/C N/C
6 GND (optional) 6 6
7 CAN-H 7 7
8 N/C N/C
9 VCC 9 9

Below are some examples where a DB9 Y-splitter can be useful:

Daisy Chain CANmod Temperature Modules

Daisy chain CANmod.temp

Need to log data from multiple CANmod.temp modules?

The DB9 Y-splitter is useful if you need to combine multiple CANmod.temp modules in order to create a CAN bus with e.g. 20 thermocouple channels.

Connect two devices in one port

Need to access a port with multiple devices?

Sometimes you need to connect two devices to e.g. a car OBD2 port. With a DB9-Y-splitter you can e.g. connect your CAN logger - while leaving open a DB9 connector for use by e.g. a diagnostics tool or e.g. a GPS-2-CAN module.

Connect Multiple CAN Bus Devices



No, in principle you can combine as many as you want. Further, you can combine them with our DB9 CAN bus extender cables for building larger CAN bus systems if needed.
