Temperature to CAN module with 4 thermocouple channels

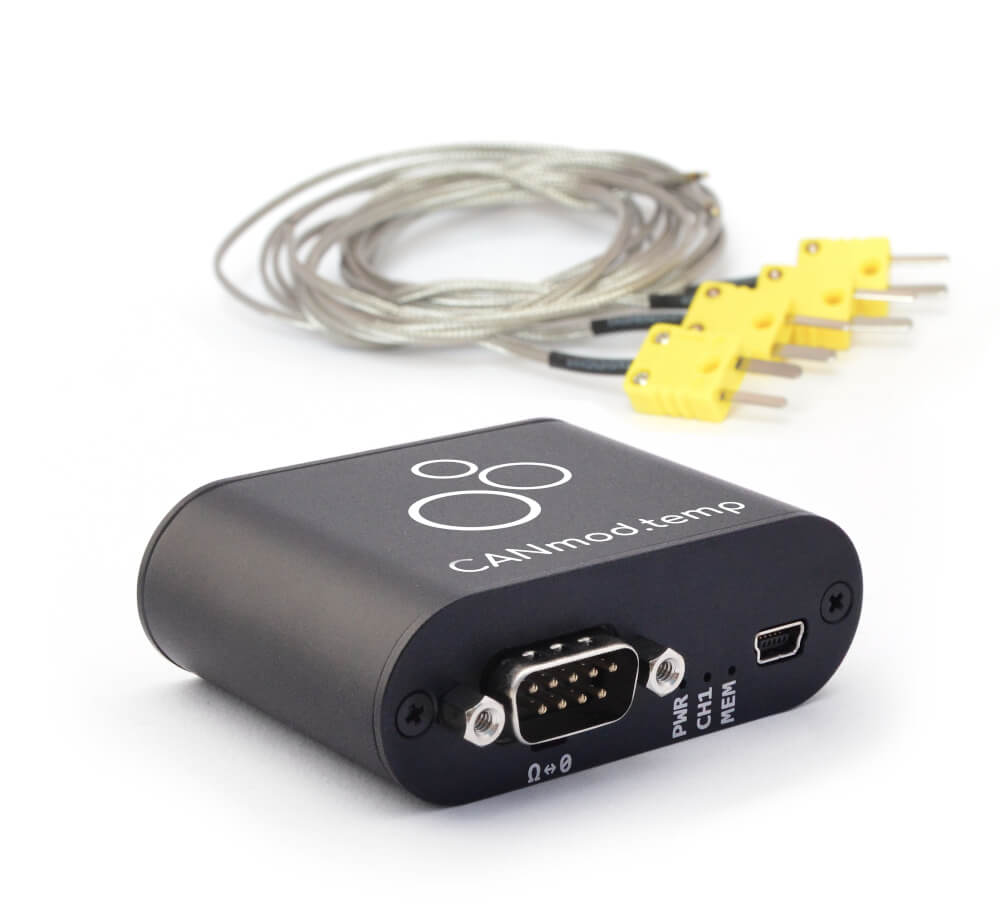

CANmod.temp: 4 x Thermocouple-to-CAN [Temperature Sensor]

This thermocouple-to-CAN module produces temperature data from 4 thermocouple sensors and outputs it via CAN bus (standalone) or USB.

The module supports all thermocouple types (B, E, J, K, N, R, S, T) and can be easily daisy-chained.

You can integrate the module with any CAN bus system - e.g. to provide temperature data for your ECUs or existing CAN hardware.

As an example, you can use the module as an add-on for the CANedge - ideal for e.g. engine dynos, EGT analysis or temperature telematics.

Probes not included - see suggested suppliers. Optional adapters (dropdown).

New: Check out the 3 min intro video.

Buy now - or learn more below!

Regular price
289 EUR
Unit price
per
In stock | Prices ex VAT | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.




Low Cost temperature-to-CAN-bus thermocouple plug & play PLUG & PLAY

Standalone - no PC required. Integrate with any CAN bus to add temperature data. DBC included

Compact Thermocouple-to-CAN-bus module COMPACT

Only 7 x 2 x 5 CM. 80G. Alu enclosure. 3 LEDs. 5-26 V DC via DB9. USB for config/FW/stream

Four channel thermocouple to CAN bus module THERMOCOUPLES

Output data from 4 thermocouples at 5 Hz. High signal resolution of 0.01 degC

Automotive temperature sensor module CAN bus PRECISE

High accuracy with cold-junction compensation & line frequency filtering. Fault detection

Configurable Thermocouple Type CAN bus USE ANY TYPE

Independently configure each thermocouple channel type (B, E, J, K, N, R, S, T)

Temperature-to-CAN-bus configuration CONFIGURABLE

Configure CAN IDs, bit rate, message frequencies and more via JSON config and GUI





Thermocouple-to-CAN-bus Module Low Cost


Easily add temperature data to any CAN bus system

Add temperature sensor data via 4 thermocouples to your CAN bus - e.g. for use by ECUs or CAN hardware.

  • Compatible with any high speed CAN bus (2.0A, 2.0B)
  • Fully configure CAN IDs, bit rate and message frequency
  • Daisy-chain multiple modules for 8, 12, 16, ... channels
  • Power at 5-26 V DC via standard DB9 adapter cables
  • Optionally record the data via any CAN interface/logger/...
  • Example: Use as add-on for the CANedge (power via 2nd port)
  • DBC file included for easy decoding to human-readable form
  • White label e.g. for inclusion in your production
Buy Now tech specs use cases


We do not currently offer thermocouple probes as options for the CANmod.temp. Typically, use cases have very specific requirements in terms of type, specifications, mounting etc. Instead, we list a number of potential suppliers below:









Example: Log/stream sensor data

The CANmod.temp is often used as an 'add-on' for the CANedge. This setup lets you record e.g. vehicle data via Channel 1 and temperature data via Channel 2. The data can be easily DBC decoded via e.g. the asammdf GUI, Python or MATLAB.

You can also stream the sensor data in real-time via USB using SavvyCAN to view raw/decoded data (e.g. via plots) - ideal for validating your setup pre-deployment or for lab testing.

log file samples asammdf savvycan


Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us


GENERAL
Functionality The device supports 4 x thermocouples for outputting temperature sensor data via CAN bus and/or USB
Included CANmod.temp module, USB dust cover (thermocouple sensors and mini USB adapter not included)
Firmware Supports free firmware updates via USB for adding features
Configuration Configuration files based on the popular open source JSON schema concept (similar to the CANedge)
Software Free open source editor tool for easy device configuration (offline/online version available)
Safety CE, FCC, IC and RoHS certified (see the Docs for certificates)
Warranty 1-year warranty
Support Free, fast & high quality support
Origin Denmark
SENSOR (temperature)
Channels Supports up to 4 thermocouple sensors/channels (plus ambient temperature via cold-junction)
Module Professional-grade MAX31856MUD+ precision thermocouple converter
Temperature Range Supports a range of -210°C to +1800°C (depending on thermocouple type)
Formatting The module conveniently outputs degrees celsius via automated edge linearization
Accuracy Lab-grade thermocouple voltage measurement accuracy with cold junction compensation
Resolution 1 degC resolution (in 1 CAN frame) and/or 0.01 degC resolution (in 2 CAN frames)
  Note: The 0.01 degC resolution typically exceeds the practical probe accuracy
Protection Thermocouple inputs are protected against overvoltage conditions up to ±45V
Types Supports thermocouple types B, E, J, K, N, R, S, T (via configuration)
Filtering Line frequency filtering of 50Hz and 60Hz (via configuration)
Fault Detection Thermocouple fault detection (open thermocouples, over- and undertemperature) is communicated via CAN
Cold Junction ±0.7°C (max, -20°C to +85°C) cold-junction accuracy
DATA PARAMETERS
CAN Signals The module communicates temperatures and fault statuses (for a full list, see the Docs or DBC file)
Thermocouple temperatures: The degree celsius (degC) temperature of each thermocouple probe [5 Hz]
Ambient temperature: The ambient temperature measured via internal cold-junction [5 Hz]
Faults: Status of each thermocouple sensor [5 Hz]
CAN BUS
Channels 1 x CAN channel
Modes The device can either broadcast the data onto the CAN bus - or provide it on-request
Standard ISO 11898: Compliant with CAN (between 5K and 1 Mbit/s baud rates)
Identifiers Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Termination Termination can be toggled via switch below DB9 connector
Retransmission Retransmission of frames that have lost arbitration or been disturbed by errors
Transceiver Protection Protection: +/- 25kV HBM ESD, +/-12kV IEC ESD, +/-14 V bus fault, short circuit
Common mode input voltage: +/-12V
TXD dominant timeout (prevents network blocking in the event of a failure)
CONFIGURATION
Bit Rate Select between standard bit rates (5K to 1M) or use custom bit-timing
Enable/Disable Individually enable/disable the CAN message
Identifier Customization Individually configure the CAN ID (11-bit or 29-bit)
Push/Poll Mode Individually configure 'trigger' modes for the CAN messages (push or poll)
Frequency Individually configure prescaling of the CAN message frequencies to lower rates
Thermocouple Type Specify the thermocouple type for each channel (e.g. Type K, Type J, ...)
Line Noise Filtering Select rejection of 50 Hz (EU) and its harmonics or 60 Hz (USA) and its harmonics
ELECTRICAL
Input Supply +5V to +26V DC via the DB9 connector (standalone/add-on mode) or
  Alternatively power via USB (for updating firmware/config or for streaming data in real-time)
Power Consumption Extremely low (<1W) - no risk of battery drainage
Protection Reverse voltage protection on CAN-bus supply
  Transient voltage event protection on supply lines
MECHANICAL
Enclosure & Weight Compact aluminium enclosure: 52.5 x 70.0 x 24.5 mm (L x W x H), 80 grams
Connector (Front) 1 x Standard D-sub 9 (DB9) connector
Connector (Back) 4 x miniature thermocouple female connectors
Pin-Out See the product manual for the DB9 connector pin-outs
USB Standard mini USB connector for config/firmware updates and streaming (USB cable not included)
LEDs Module status via 3 external LEDs: Power, CAN bus, Memory
Temperature Operating temperature (CANmod.temp module): -25degC to +70degC
IP Rating IP Rating 40
Mounting Module can be mounted via e.g. rugged double-sided tape, zip-ties or a mounting bracket

Download PDF datasheet


The CANmod.temp can be installed standalone in any CAN bus system - including e.g. as an add-on for the CANedge.



Thermocouple-to-CAN module standalone OEM white label

Add temperature data to your CAN bus

Need to inject temperature data directly into your CAN bus?

The thermocouple-to-CAN module can be used standalone to inject CAN frames with temperature into your CAN bus system. The data can be consumed by other CAN nodes on the network - e.g. ECUs, cabin displays, CAN loggers or telematics control units (TCU). To ensure compatibility, you can modify the module output bit rate and CAN IDs via the simple config editor. Ideal for use in e.g. automotive development, engine dynos, fleet management, dispute handling and more.



CAN + temperature data logging & telematics

Need to collect vehicle CAN bus and temperature data via SD/WiFi?

The CANmod.temp can be deployed as an 'add-on' module for the CANedge. Simply configure the CANedge to provide a 5V power out via the 2nd port - and connect the CANmod.temp via the optional adapter cable. This lets you log e.g. vehicle CAN bus data via channel 1 and time-synced temperature data via channel 2. This provides a flexible data logger for exhaust gas temperature (EGT) analysis - or a telematics solution for automotive heating, ventilation, and air conditioning (HVAC) applications.

Thermocouple-to-CAN CANedge add-on WiFi automotive telematics


Vehicle Telematics CAN Bus Temperature OBD2 Cloud Telematics Dashboard

On-road vehicle temperature telematics

Need to collect vehicle and temperature data via 3G/4G?

The CANedge2 can upload data while on-the-road using e.g. a 3G/4G USB router. You can power the 3G/4G hotspot from the vehicle - or use our DB9-DB9/USB adapter to power both the hotspot and CANmod.temp via the 2nd port of the CANedge2. The uploaded log files can e.g. be visualized in telematics dashboards. Ideal for e.g. 'temperature telematics' use cases like HVAC monitoring, refrigirator tracking for perishable goods, temperature-based alerts, predictive maintenance and more.



Daisy-chaining thermocouple modules

Need a larger number of thermocouple channels?

The CANmod.temp is extremely simple to setup and configure. With all data contained in 1 CAN frame, you can quickly daisy-chain several modules to add 8, 12, 16, 20, 24, 30, ... thermocouple channels to your CAN bus (e.g. using DB9-Y-splitters). Every individual thermocouple probes can be independently configured to any type - allowing for complete customization. If you wish to record the data to a CAN bus data logger, you can use the CANedge to easily power a full chain of modules via the 2nd port.

Daisy Chain Thermocouple to CAN bus temperature sensor modules






The CANmod.temp is a small device that supports up to 4 thermocouple sensors of configurable type. It produces high-precision temperature measurements in degC at 5 Hz - and outputs this data as CAN frames via the DB9 connector.

The Thermocouple-to-CAN module can be integrated with any high speed CAN bus system (2.0A, 2.0B) due to the fully configurable bit rates and CAN IDs. Further, it can be powered flexibly from 5-26 V DC, making the installation and wiring very simple for the vast majority of automotive applications.

When used as a standalone device, the temperature data is simply broadcast onto the CAN bus along with the existing CAN traffic. This means that any existing CAN nodes (e.g. ECUs) and CAN hardware (e.g. CAN displays, CAN loggers, CAN interfaces, CAN telematics units) can record the temperature data along with the existing CAN bus traffic. It also means that e.g. OEMs can use temperature data from the CANmod.temp to trigger/control certain behavior in select ECUs.

As an example, the CANmod.temp can be used as an add-on for the CANedge CAN bus data logger. In this setup, the CAN bus data from the CANmod.temp is recorded just like data from any other CAN bus. To ease installation, the CANedge can enable a '5V power out' on the 2nd port. This means you can easily connect and power the CANmod.temp via the 2nd port (optionally along with other CAN modules like our CANmod.gps and/or a 3G/4G USB hotspot). In this setup, the CANedge can log data from e.g. a vehicle via the 1st port and log timesynced temperature data from the CANmod.temp via the 2nd port - storing both data sources in the same log file.


We offer a number of useful adapter cables as options for the CANmod.temp:

DB9-DB9/USB: This lets you connect both a 3G/4G USB hotspot and a CANmod.temp module to the 2nd port of the CANedge2 - ideal if you need to record CAN and temperature data and send it via 3G/4G to your own server.

DB9-DB9/DB9 (Y splitter): This lets you connect one or more modules to the 2nd port of the CANedge - ideal if you e.g. need to log data from both a CANmod.temp and a CANmod.gps module.

This adapter can also be used if you wish to connect both the CANmod.temp and e.g. a CANedge to the same CAN bus - e.g. for enabling the logging of 2 CAN channels with the CANedge in parallel with logging the temperature data.

Other adapters: You can use any of our standard DB9 adapter cables with the CANmod.temp when using it in standalone mode - thus powering the device via a 5-26 V power supply and sending CAN data directly into your CAN application.


If you wish to add thermocouple-based temperature data to your CAN bus system or your CAN bus data log files (e.g. via the CANedge), the CANmod.temp is by far the simplest and lowest cost solution. The module is designed around the same concepts as the CANedge: Simple-to-use, professional-grade specs and interoperability.

The module is also extremely price competitive vs. alternatives on the market, making it a great choice for e.g. standalone use cases where you need to add temperature data for consumption by other CAN hardware. The device can be easily configured for compatibility with any CAN bus system - and due to the compact size, it can be easily installed in practically any CAN based application. Further, the DBC file ensures that decoding the CAN bus data is easily done in practically any CAN bus software tool.

The CANmod.temp also provides a highly modular approach, where you can easily daisy-chain as many modules you need in order to get 8, 12, 16, 20, 24, ... thermocouple channels injected into your CAN bus.


The installation of the CANmod.temp depends on your use case - for full details, please refer to the CANmod.temp documentation.


The CANmod series can be used as a plug & play extension of the CANedge CAN bus data logger. A popular way of using the module is to power it via the 2nd port of the CANedge - enabling easy logging of sensor data on channel 2, timesynced with CAN bus data from your main CAN application via channel 1.

To use the CANmod with a CANedge, you'll follow the below steps:

  • In the CANedge Configuration File, enable the 2nd port 'power out'
  • Set the CANedge bit rate on CAN CH2 to match the CANmod (default 250k)
  • On the CANmod, enable the 120 ohm CAN termination via the switch below the DB9
  • Use a suitable adapter cable to connect the CANmod to the 2nd port of the CANedge (e.g. our DB9-DB9/DB9 adapter)

You can of course also simply connect the CANmod to your main CAN bus network (e.g. powering it directly from the vehicle/machine power supply at 12-26V). In this case, the CANedge can be connected to the same network, allowing it to record the CANmod sensor data along with the regular CAN traffic.


The CANmod.temp supports various accuracy-improving features, such as cold junction compensation and line frequency filtering. These help improve the actual temperature measurement quality. The temprature measurements can be output at a 1 degC resolution or 0.01 degC resolution, depending on your device configuration. Here, it's worth noting that the 0.01 degC resolution does not mean that you can expect a 0.01 degC accuracy in absolute terms. Instead, the 0.01 degC resolution should mainly be seen as a useful signal for the purpose of analyzing changes in the temperature values, not the absolute temperatures themselves.


The ideal thermocouple sensor (aka thermoelements) type depends on your use case and the temperature range you'll be measuring.

  • Type K thermocouple sensors are the most common - with low cost, high accurac/reliability and a wide temperature range
  • Type J sensors are also common and may offer lower cost, but also smaller temperature ranges vs. type K
  • Type E offers higher accuracy than type K and type J at moderate temperatures
  • Type N is similar to type K with high reliability, though typically more expensive
  • Type S/R thermocouples are suitable for very high temperature with high accuracy and reliability
  • Type B thermocouple probes are used for extremely high temperature ranges
  • Type E thermocouples are used in very low temperature measurements, e.g. cryogenics etc

For more detailse, see e.g. below links:


No, the CANmod.temp is not a CAN logger or able to e.g. push data to a server. For such a use case, you would combine the CANmod.temp with e.g. a CANedge2. The CAN logger then serves as the platform for recording the temperature data being output by the CANmod.temp.


The CANmod.temp is typically used in industrial/automotive temperature measurement - e.g. for recording below temperature types:

  • Cylinder head temperatures
  • Air temperatures
  • Exhaust gas temperatures (EGT) incl. simulated exhaust temperature measurements
  • Fluid temperature (e.g. fuel temperature, engine oil temperature, transmission fluid temperature etc)
  • Brake block & disk temperatures
  • Infrared and thermographic pyrometry
  • Oven temperature profiling
  • Air conditioning optimization (HVAC)
  • Temperature control/regulation/monitoring (e.g. for perishable goods)
  • EV battery temperature management, diagnostics and optimization (e.g. for EV charging)
  • Engine temperature (coolant circuit)
  • Exterior/ambient/cabin temperatures
