CAN logger mounting bracket

Mounting Bracket Kit (CANedge, CANmod)

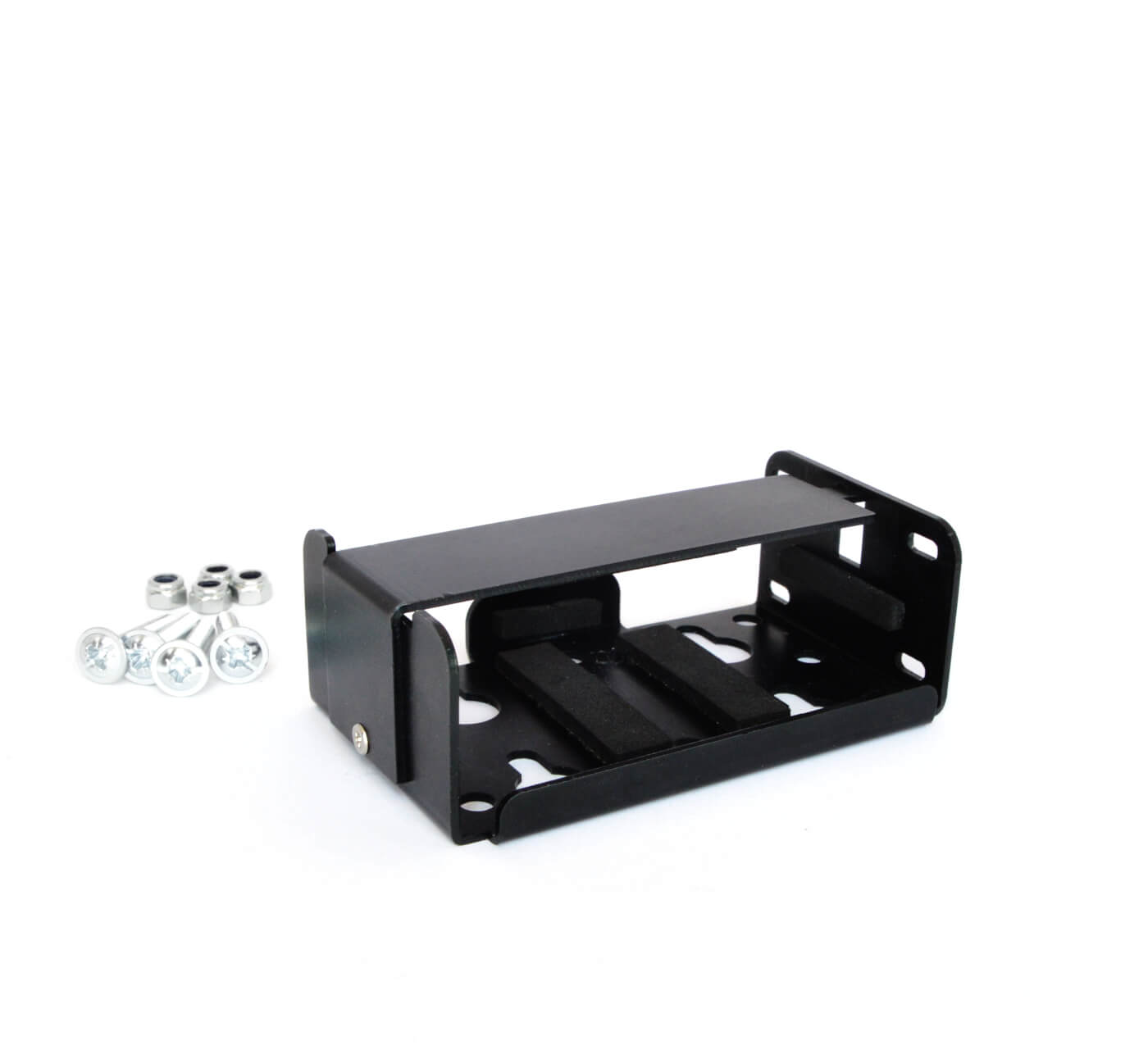

The CANedge mounting bracket is an easy, flexible and compact solution for installing your CANedge CAN/LIN logger in the field.

You can easily mount the bracket via e.g. screws or zip ties - and your CANedge can be inserted/extracted via the lockable top cover.

Further, the built-in EVA foam padding helps protect the CANedge against light vibration.

The bracket includes M4 screws, lock-nuts, zip ties (large & small) and a plastic pouch.

Buy now - or learn more below!

Regular price
30 EUR
Unit price
per
In stock | Prices ex VAT | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.




Easily mount and install
EASILY MOUNT

Easily mount your CANedge via screws, zip ties or double-sided tape

Compact wall bracket CAN logger
COMPACT

Extremely compact (9 x 6 x 3 cm) and lightweight (40 G) aluminium bracket

Flexible data logger installation
EXTRACTABLE

Insert/extract CANedge after mounting via flexible top cover

Vibration padding via EVA foam
PADDING

Built-in EVA foam padding provides basic vibration resistance

Ingress protection against dust rugged plastic pouch
PROTECT

Optionally use heavy-duty plastic pouch for light ingress protection

Telematics mounting bracket
PRACTICAL

Fasten cables or 3G/4G hotspot via zip ties through bracket side slots




About the mounting bracket

The CANedge is ideal for long-term logging of CAN/LIN data in the field - often over several months/years. For such use cases, a solid device installation is critical.

The CANedge mounting bracket can be installed in multiple ways: You can use M4 screws (regular holes, key slots) to install against flat surfaces - or zip ties for more non-standard installations. Some customers also install the bracket using e.g. heavy-duty double-sided tape (not included).

3D & drawing use cases
CANedge mounting bracket wall installation




CANedge2 3G 4G 5G hotspot bracket mount

Flexible and practical

To insert or extract the CANedge, you can unscrew the top cover via the lock mechanism on the side. This is useful if you temporarily wish to take out the CANedge.

The bracket can also be used to lock your cables to the bracket side or to e.g. fasten a 3G/4G USB hotspot.

Basic protection

The bracket has built-in EVA foam padding on all sides. This helps keep the CANedge in place - while adding basic vibration protection. For high vibration use cases, we recommend using anti-vibration screws (not included).

Some users also use the included rugged plastic pouch to improve ingress protection - see our FAQ for details.

Note: You should always evaluate your specific installation environment to ensure the device is safely installed.

Mounting Bracket IP rating ingress protection plastic pouch

Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us

GENERAL
Dimensions 89.4 x 57.6 x 32.0 mm (L x W x H)
Weight 40G
Material Black surface anodized aluminium
Screw holes 8 x M4 (regular) + 4 x M4 (keyhole)
Padding 3 mm EVA foam (top, bottom, sides)
Package contents Bracket, 4 M4 22 mm screws + lock nuts, 4 zip ties (3.6 x 250 mm), 2 zip ties (2.5 x 100 mm), 1 plastic pouch


CANedge Mounting Bracket Drawing

Below are some examples where the CANedge mounting bracket can be useful:

CANedge Mounting Bracket Telematics J1939 Logger

Vehicle telematics & fleet management

Need to install the CANedge across a fleet of vehicles?

For telematics applications, having a consistent and flexible way of installing the CANedge can be vital. With the mounting bracket, you'll have multiple options for deploying the CANedge in e.g. trucks, cars, forklifts and other applications.

Industrial machine monitoring

Need to deploy your logger in a production setting?

When installing a CAN logger within production settings, it is vital that cables and clutter are kept under control. Here, the bracket can be used to securely install the CANedge against e.g. a machine surface or wall - while the cables can be 'locked' in place using the side slots of the bracket. For low vibration, indoor installations double sided tape can also provide a fast and non-invasive installation method.

Rare Issue Diagnostics Machinery Maintenance



Yes. The bracket includes keyhole slots for screws. This means that you can add the screws to your installation surface prior to adding the mounting bracket. In this case, the bracket can be installed with the CANedge inserted and the top cover locked.

Optionally, you can in such a case add an extra screw above the mounting bracket to securely "lock" the bracket in the intended position after installation.


For many use cases, heavy duty double-sided tape (e.g. from 3M) will be a simple and secure method of installation. This type of tape is typically intended to hold up several kg of weight - and the mounting bracket + CANedge will weigh less than 150 G in total.

However, we always recommend that you consider the specific context that you install the device in. For example, installations in settings with vibration, humidity or other factors may result in double sided tape not being an adequate solution.


For some use cases, the CANedge may be exposed to some level of dust ingress. Here, the plastic pouch can provide basic protection if installed in a suitable way based on your environment.

Note that the plastic pouch should not be seen as having formal impact on the IP rating of the CANedge. Rather, it can serve as supplementary protection for some scenarios.

Note also that in environments with significant humidity, temperature fluctuations or water splash exposure, a formal IP65-IP67 installation is recommended - e.g. an electrical junction box.


The mounting bracket has basic vibration resistance due to the built-in EVA foam padding. However, you should always evaluate the level of vibration in your target installation environment. If in doubt, we recommend that you install the bracket using anti-vibration screws (aka rubber mounts, shock absorber screws, ...)


The CANedge is used in a large variety of use cases. While mounting flanges could make sense for some use cases, we believe a separate mounting bracket increases flexibility. For example, built-in screw holes would imply that you'd have to use tooling to remove the CANedge from the installation surface when you temporarily wish to collect the device. Here, the separate bracket offers more flexibility - while remaining extremely compact and light-weight.
