MF4 Decoders - DBC Decode CAN Data to CSV/Parquet [Data Lakes]

The ASAM MDF (Measurement Data Format) is a popular, open and standardized format for storing bus data e.g. from CAN bus (incl. J1939, OBD2, CAN FD etc) and LIN bus.

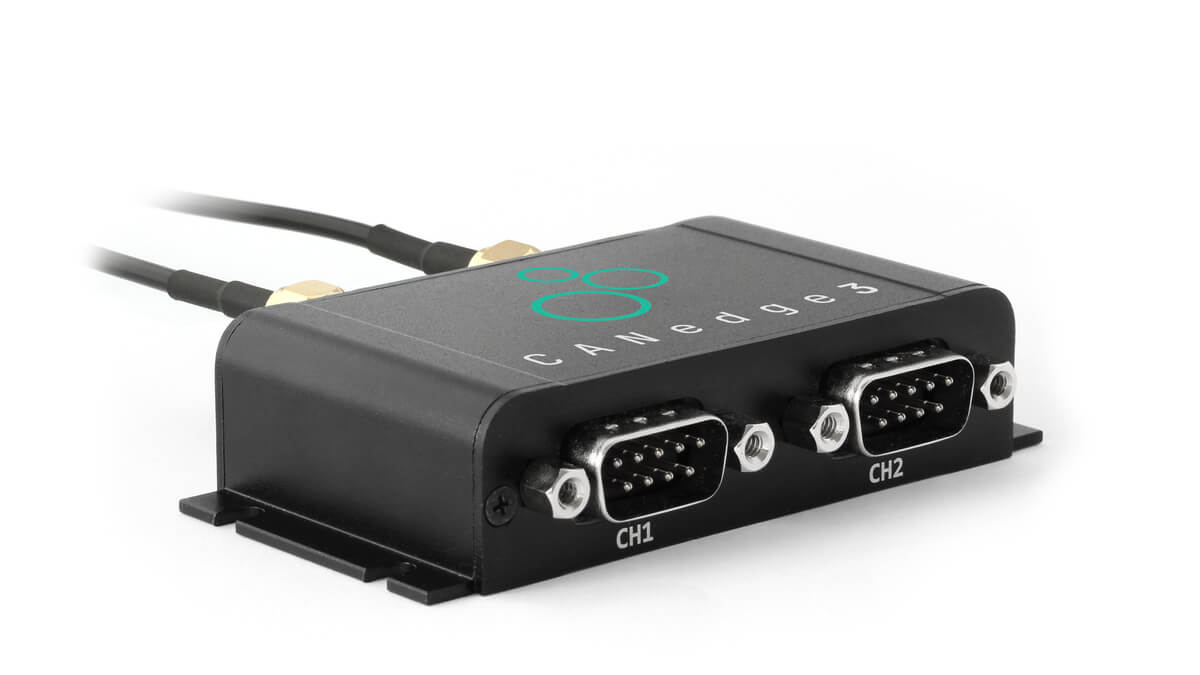

The CANedge records raw CAN/LIN data in the latest standardized version, MDF4 (*.MF4). The log file format is ideally suited for pro specs CAN logging at high bus loads and enables both lossless recording and 100% power safety. Further, the CANedge supports embedded encryption and compression of the log file data (both cases natively supported by the MF4 decoders).

The raw MF4 data from the CANedge can be loaded natively in various software/API tools, including the asammdf GUI/API, our Python API, the MF4 converters - and the MF4 decoders (detailed in this article).

To learn more about the MDF4 file format, see our MF4 intro.

The MF4 decoders can be deployed in numerous ways - below are two examples:

Example 1: Local PC drag & drop usage

• A CANedge records raw CAN/LIN data to an SD card
• A log file folder from the SD card is copied to a PC
• The relevant DBC files are placed next to the MF4 decoder
• The data is DBC decoded to CSV via drag & drop
• The CSV files can be directly loaded in e.g. Excel

Example 2: Cloud based auto-processing

• A CANedge uploads raw CAN/LIN data to an AWS S3 bucket
• When a log file is uploaded it triggers a Lambda function
• The Lambda uses the MF4 decoder and DBC files from S3
• Via the Lambda, the uploaded file is decoded to Parquet files
• The Parquet files are written to an AWS S3 'output bucket'
• The data lake can be visualized in e.g. Grafana dashboards

Learn more in our Grafana dashboard article.

The decoders support DBC files for practically any CAN bus, CAN FD or LIN bus protocol. This includes e.g. OBD2, J1939, NMEA 2000, ISOBUS, CANopen and proprietary OEM-specific DBC files. For details, see the MF4 decoder docs. For each DBC file, you specify which CAN/LIN channel to apply it to (e.g. can1, can2, lin1 etc) and you can provide multiple DBC files per channel.

The MF4 decoders enable you to output DBC decoded CAN/LIN data as either CSV files or Parquet files. Below we briefly outline the key differences between the formats:

• CSV files are simple, text-based, and universally compatible, ideal for small to medium-sized datasets and ad hoc analyses. They are easy to use, but less efficient for large data
• Parquet files are binary and offer vastly faster performance and storage efficiency vs CSV - but require more specialized tools for analysis
• While CSVs are straightforward for basic tasks, Parquet is generally preferable for performance-intensive analysis and handling large-scale time series data

For most use cases, we recommend to use the Parquet file format if both options exist - and many of our plug & play integrations take outset in Parquet data lakes for the above reasons.

Parquet data lakes are comprised of files, meaning they can be stored in file storage solutions like e.g. AWS S3. Storing data on S3 is incredibly low cost (0.023$/GB/month) compared to most databases (typically ~1.5$/GB/month), which is relevant as many CAN/LIN data logging use cases can require terabytes of storage over time.

The 'downside' to storing files on S3 vs. in a database is generally the fact that it is much slower to query the data, e.g. for analytics or visualization. However, this is where the interface tools like Amazon Athena come into play as outlined below.

We refer to tools like Amazon Athena, Google BigQuery and Azure Synapse Analytics as 'interfaces' for simplicity. They can also be referred to as cloud based serverless data warehouse services. The serverless part is important: It means that it's simple to set up - and you pay only when you query data.

Many automotive OEM engineers often need to store terabytes of data for analysis - yet, the engineers may only need to access small subsets of the data on an infrequent basis. Yet, when they access the data, the query speed has to be fast - even if they query gigabytes of data. Tools like Amazon Athena are ideally suited for this. When you query the data, Athena spins up the necessary compute and parallelization in real-time - meaning you can extract insights across gigabytes of your S3 data lake in seconds using standard SQL queries. At the same time, all the complexity is abstracted away - and the solutions can be automatically deployed as per our step-by-step guides.

There are too many software/API integration examples for us to list - below is a more extensive recap of tools:

Direct integration examples

Below are examples of tools that can directly work with Parquet files:

• MATLAB: Natively supports local or S3 based Parquet data lakes, with powerful support for out-of-memory tall arrays
• Python: Natively supports local or S3 based Parquet data lakes and offers libraries for key interfaces (Athena, ClickHouse etc.)
• Power BI: Supports reading Parquet files from the local filesystem, Azure Blob Storage, and Azure Data Lake Storage Gen2
• Tad: Free desktop tool for viewing and analyzing tabular data incl. Parquet files. Useful for ad hoc review of your data
• Apache Spark: A unified analytics engine for large-scale data processing that supports Parquet files
• Databricks: A platform for massive scale data engineering and collaborative data science, supporting Parquet files
• Tableau: A data visualization tool that can connect to Parquet files through Spark SQL or other connectors
• Apache Hadoop: Supports Parquet file format for HDFS and other storage systems
• PostgreSQL: With the appropriate extensions, it can query Parquet files
• Cloudera: Offers a platform that includes Parquet file support
• Snowflake: A cloud data platform that can load and query Parquet files
• Microsoft SQL Server: Can access Parquet files via PolyBase
• MongoDB: Can import data from Parquet files using specific tools and connectors
• Teradata: Supports querying Parquet files using QueryGrid or other connectors
• Apache Drill: A schema-free SQL Query Engine for Hadoop, NoSQL, and Cloud Storage, which supports Parquet files
• Vertica: An analytics database that can handle Parquet file format
• IBM Db2: Can integrate with tools to load and query Parquet files

Interface based integrations

Below are examples of tools that can integrate via interfaces like Athena, BigQuery, Synapse, ClickHouse etc.:

• Power BI (driver): By installing a JDBC/ODBC driver (for e.g. Athena), you can use SQL to query your data lake
• Excel (driver): By installing a JDBC/ODBC driver (for e.g. Athena), you can use SQL to query your data lake
• Grafana: Offers powerful and elegant dashboards for data visualization, ideal for visualizing decoded CAN/LIN data
• Tableau: Known for its interactive data visualization capabilities, especially popular for business intelligence applications
• Looker: Employs an analytics-oriented application framework, including business intelligence and data exploration features
• Google Data Studio: Customizable reports/dashboards, known for user-friendly design and integration with Google services
• AWS QuickSight: A fast, cloud-powered business intelligence service that integrates easily with e.g. Amazon Athena
• Apache Superset Apache Superset is an open-source data exploration and visualization platform written in Python
• Deepnote Deepnote is a collaborative data notebook built for teams to discover and share insights
• Rocket BI End-to-end solution for discovering business insights from big data
• Zing Data Zing Data is a data exploration and visualization platform supporting e.g. ClickHouse
• Explo Customer-facing analytics for any platform. Designed for beautiful visualization. Engineered for simplicity
• Metabase Metabase is an easy-to-use, open source UI tool for asking questions about your data
• Qlik: Offers end-to-end, real-time data integration and analytics solutions, known for the associative exploration user interface
• Domo: Combines a powerful back-end with a user-friendly front-end, ideal for consolidating data systems into one platform
• Sisense: Known for its drag-and-drop user interface, enabling easy creation of complex data models and visualizations
• MicroStrategy: Offers a comprehensive suite of BI tools, emphasizing mobile analytics and hyper-intelligence features
• Splunk: Specializes in processing and analyzing machine-generated big data via a web-style interface
• Exasol: Offers a high-performance, in-memory, MPP database designed for analytics and fast data processing
• Alteryx: Provides an end-to-end platform for data science and analytics, facilitating easy data blending and advanced analytics
• SAP Analytics Cloud: Offers business intelligence, augmented analytics, predictive analytics, and enterprise planning
• IBM Cognos Analytics: Integrates AI to help users visualize, analyze, and share actionable business insights
• GoodData: Provides cloud-based tools for big data and analytics, with a focus on enterprise-level data management and analysis
• Dundas BI: Offers flexible dashboards, reporting, and analytics features, allowing for tailored BI experiences
• Yellowfin BI: Delivers business intelligence tools and a suite of analytics products with collaborative features for sharing insights
• Reveal: Provides embedded analytics and a user-centric design, making data more accessible for decision makers and teams
• Chartio: A cloud-based data exploration tool, known for its ease of use and ability to blend data from multiple sources

Yes, you control 100% how you create and store your CSV/Parquet data lake.

In our examples, we frequently take outset in a setup where your CANedge2/CANedge3 uploads data to an AWS S3 bucket - with uploaded data automatically processed via AWS Lambda functions. This is a common setup that we provide plug & play solutions for - hence it will often be the simplest way to deploy your data processing and data lake.

However, you can set this up in any way you want. For example, you might store your uploaded log files on a self-hosted MinIO S3 bucket instead. In such a scenario, you can periodically process new MF4 log files manually (e.g. via drag & drop or the CLI) to update your data lake - or you can set up e.g. a cron job or similar service to handle this. The data lake can be stored in another MinIO S3 bucket - and you can then directly work with the data lake from here (e.g. in MATLAB/Python) or integrate the data using an open source system like ClickHouse or DuckDB.

The same principle applies if you upload data to Google Cloud S3 or Azure blob storage (via an S3 gateway) - here you can use their native data processing services to deploy the MF4 decoders if you wish to fully automate the DBC decoding of incoming data. We do not provide plug & play solutions for deploying this, however.

Of course, you can also simply use the MF4 decoders locally to create a locally stored Parquet data lake. This will often suffice if you're e.g. using a CANedge1 to record your CAN/LIN data - and you simply wish to process this data on your own PC. In such use cases, the Parquet data lake can still be a powerful tool, since it makes it much easier to perform large-scale data processing compared to tools like the asammdf GUI.

We provide two types of MF4 executables for use with the CANedge: The MF4 converters and MF4 decoders.

The MF4 converters let you convert the MDF log files to other formats like Vector ASC, PEAK TRC and CSV. These converters do not perform any form of DBC decoding of the raw CAN/LIN data - they only change the file format.

The MF4 decoders are very similar in functionality as the MF4 converters. However, these excecutables DBC decode the log files to physical values, outputting them as either CSV or Parquet files. When using the MF4 decoders, you provide your DBC file(s) to enable the decoding. These executables are ideal if your goal is to analyse the human-readable form of the data and/or e.g. create 'data lakes' for analysing/visualizing the data at scale.

No, you simply download the converter executables - no installation required.

As evident, there are almost limitless options for how you can deploy your MF4 decoders, how you can store the resulting data lake, how you provide interfaces for it - and what software/API tools you integrate it with.

You can use the CANedge and our MF4 decoders to facilitate any of these deployment setups. However, our team offers step-by-step guides and technical support only on limited sub sets of the deployments, such as our Grafana-Athena integration.
