Telematics WiFi Rooftop Antenna

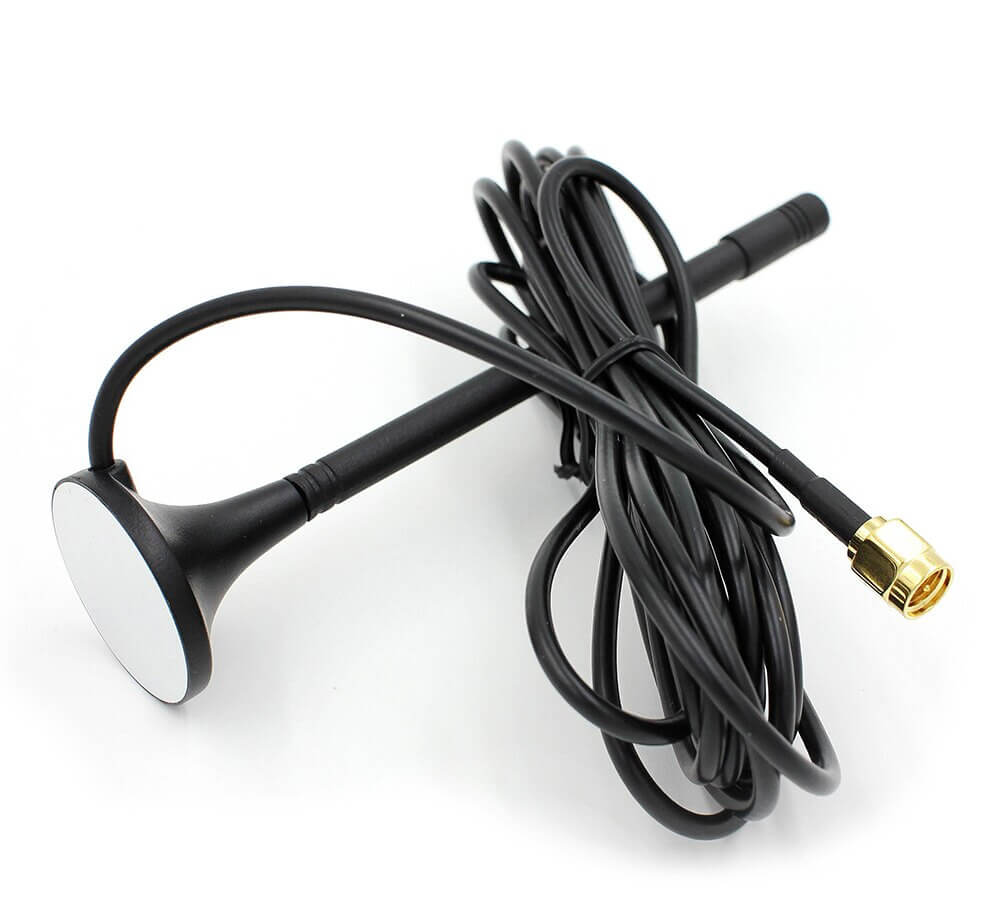

WiFi Rooftop Antenna (SMA, 3M Cable)

Need to extend your CANedge2 antenna?

The WiFi SMA antenna of the CANedge2 can be easily disconnected - letting you e.g. add this rooftop SMA antenna.

This can be useful when the CANedge2 is installed behind shielded panels that reduce WiFi connectivity.

With the 3 meter extension cable, the rooftop WiFi antenna can positioned for optimal range and line-of-sight.

Note: This item is no longer in stock - see instead our WiFi antenna extension cable with magnetic stand.

Learn more below - or buy now!

20 EUR
In stock | Prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.



Improve WiFi range CAN telematics J1939 BOOST RANGE

Improve WiFi range via optimal antenna positioning

Line of sight WiFi access point roof top antenna LINE-OF-SIGHT

Ensure line-of-sight to WiFi access point via roof placement

Protect CAN Logger IP Rating Secure PROTECT

Install your device in a shielded position without loosing range

Plug & Play Easy Install PLUG & PLAY

Easily detach the default antenna to add the rooftop antenna

Combine Multiple Extension Cables 3 METER

The 3 meter extension cable allows for flexible installations

1 Year Warranty 1Y WARRANTY

We offer a 1-year warranty on all our products




About the rooftop antenna

In some use cases, you'll want to install the CANedge2 safely in e.g. a metal box, cabin or behind metal panels. In these cases, the WiFi range of the CANedge2 can be drastically reduced.

To solve this, the CANedge2 lets you replace the default WiFi antenna. By connecting this rooftop antenna, you can keep the CANedge2 in a safe location, while moving the antenna to an optimal position for range and line-of-sight.

Typical use cases include forklifts in warehouses that upload data when periodically in range of WiFi routers. The antenna is low cost and can endure rugged environments, which also makes it ideal for e.g. mining use cases.



Check out our tech specs above - or buy now!

Do you have any questions?

Contact us

GENERAL
Base Diameter 30 mm
Height 120 mm
Frequency Range 2.4Ghz (2400~2483.5Mhz)
Gain 2.0 dBi
V.S.W.R (min) <2.0
Impedance 50Ω
Polarization Linear
Cable Type RG174
Cable Length 3 meter
Connector SMA
Mounting Magnet mounting (suitable for low-vibration environments)
Operating temperature -40 degC to +85 degC
Vibration 10 to 55Hz with 1.5mm amplitude 2 hours
Weight 55G
