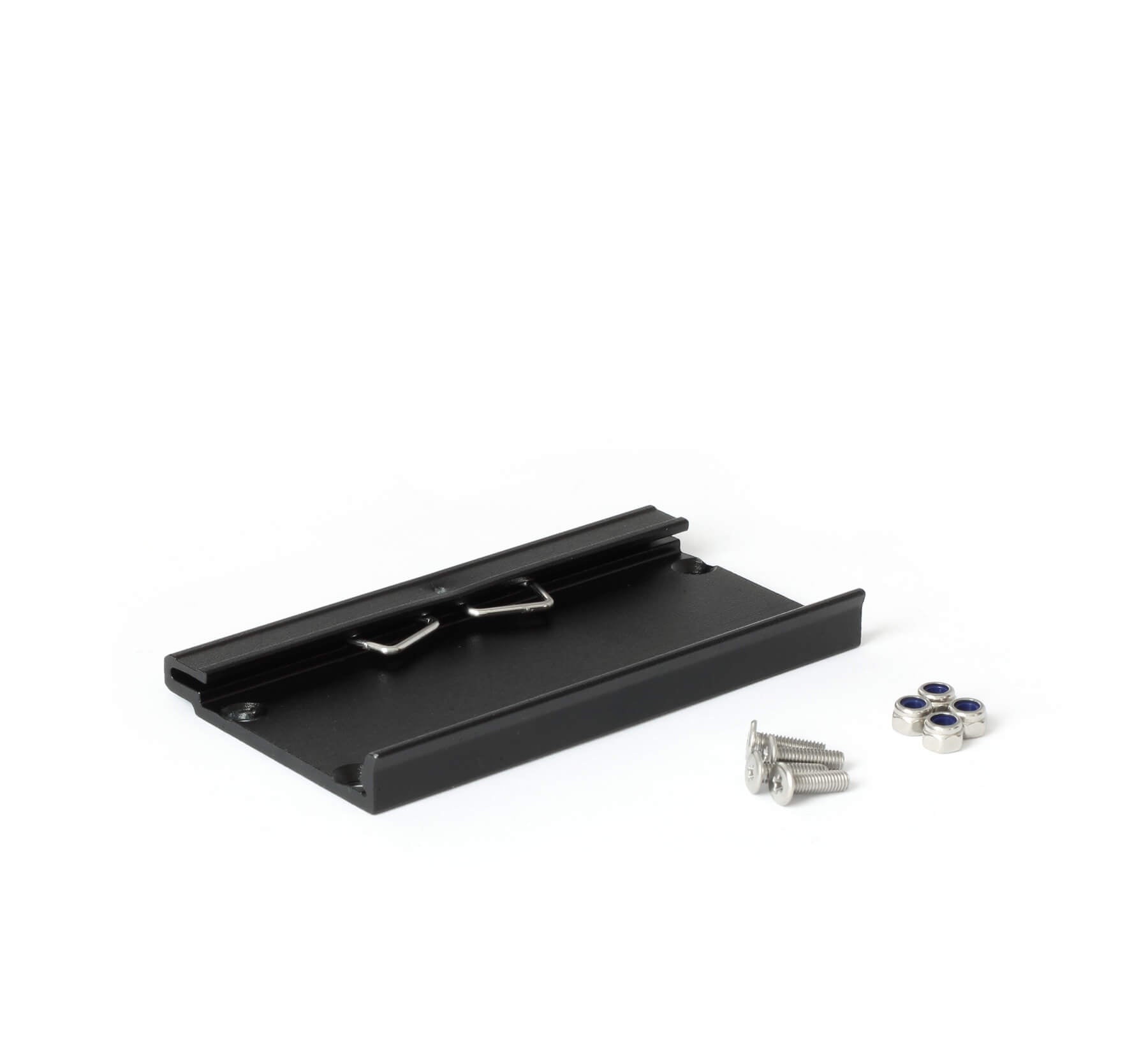

CAN bus data logger DIN rail clip 35 mm

CANedge DIN Rail Mounting Clip [EN 50022 / DIN EN 60715]

Need to mount your CANedge onto a standard DIN rail?

This DIN rail clip lets you securely install your CANedge CAN logger onto 35 mm DIN rails - ideal for industrial cabinets, machine enclosures and permanent installations. The kit includes the aluminum clip plus M3 bolts and lock nuts.

Buy now - or learn more below!

40 EUR
SKU: A060 | in stock | prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.



DIN rail mount CAN logger industrial DIN RAIL

Fits standard 35 mm DIN rails for industrial cabinets and panels

Industrial control cabinet CAN logger mount INDUSTRIAL

For control cabinets, machinery and permanent setups

Spring loaded DIN rail clip quick install SNAP-ON

Spring-loaded clip enables quick installation and removal

Aluminum DIN rail clip black anodized ALUMINUM

Sturdy black aluminum body - just 40 G and 47 x 6 x 87 mm

Secure CANedge mounting holes SECURE

Fits the CANedge mounting holes for a robust hold

M3 bolts lock nuts mounting kit included KIT INCLUDED

4 x M3 bolts and 4 x lock nuts included for device mounting




About the DIN rail clip

The DIN rail clip provides a robust, industrial-grade mounting solution for the CANedge data logger. The black aluminum body fits standard 35 mm DIN rails (EN 50022 / DIN EN 60715) - the same rails used across most industrial cabinets, PLC enclosures and machine panels.

Simply attach your CANedge to the clip using the included M3 bolts and lock nuts, then snap the assembly onto any 35 mm DIN rail. The spring-loaded clip ensures a secure hold while still enabling quick removal for service or reconfiguration.

For more on installing your CANedge in the field, see also:

use cases

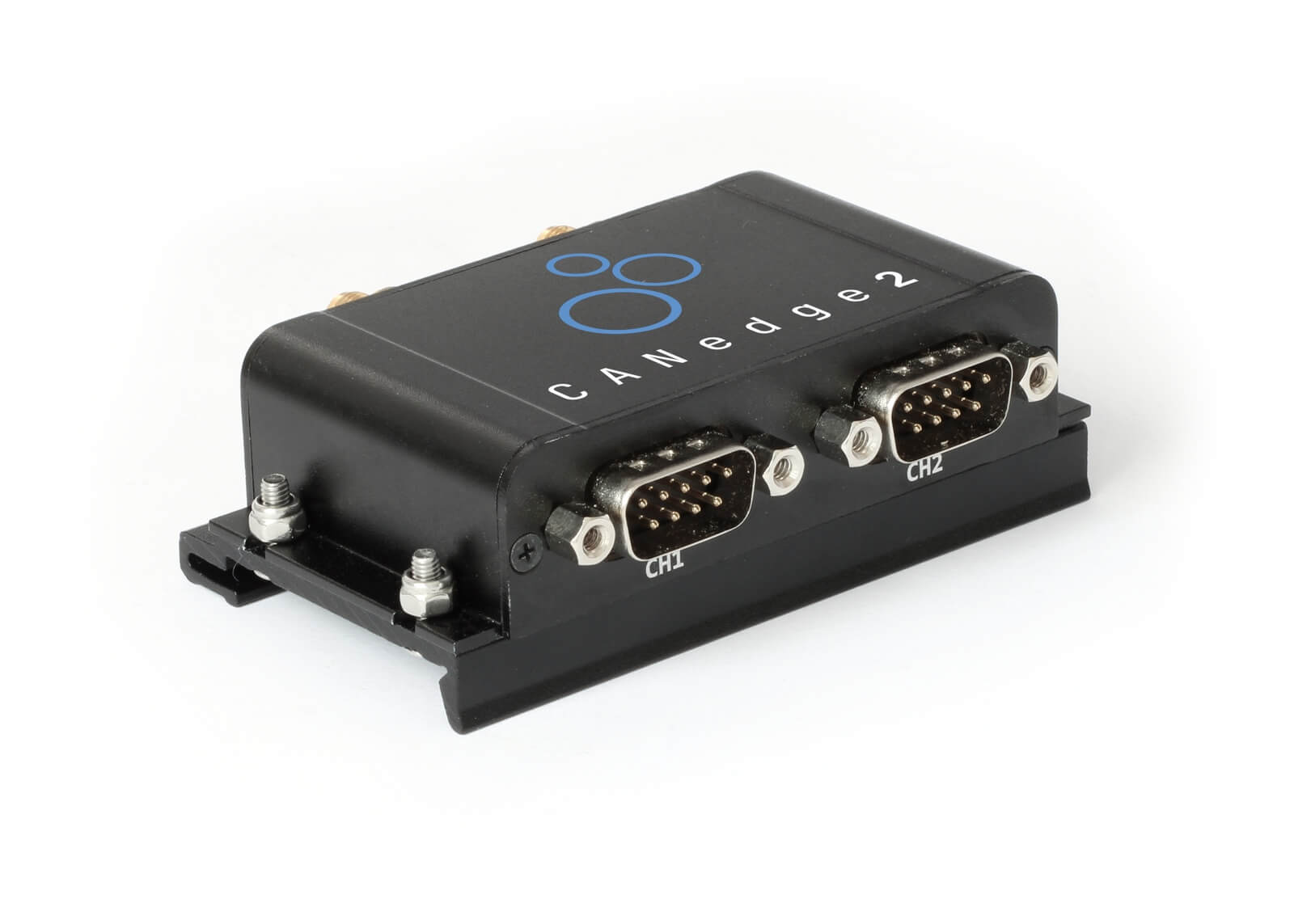

CANedge DIN rail mounted industrial cabinet




Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us

GENERAL
Package contents 1 x DIN rail mounting clip, 4 x M3 bolts, 4 x M3 lock nuts
Dimensions 47 x 6 x 87 mm
Weight 40 G
Material Aluminum
Color Black
DIN rail standard Fits standard 35 mm DIN rails (EN 50022 / DIN EN 60715)
Compatibility Fits the CANedge mounting holes

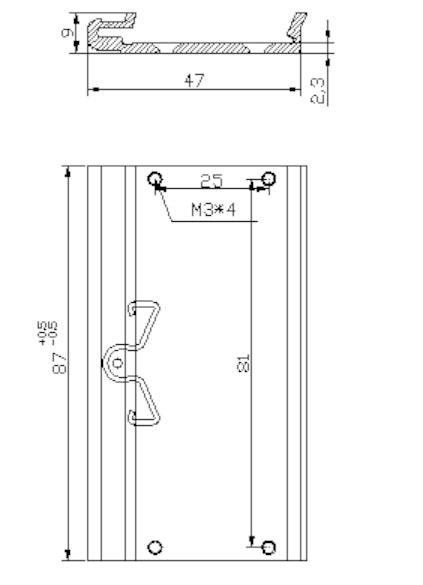

DIN rail clip dimensions drawing


The DIN rail clip is particularly useful in industrial applications:


CAN logger DIN rail industrial control cabinet

Industrial cabinet installation

Need to install your CAN logger in a control cabinet?

Modern industrial cabinets, control panels and PLC enclosures use 35 mm DIN rails as the standard mounting interface. With the DIN rail clip, you can quickly install your CANedge alongside other devices like PLCs, relays and gateways - enabling consistent, professional installations across your machines and production lines.






Yes - the clip fits all CANedge1, CANedge2 and CANedge3 devices via the standard M3 mounting holes on the underside. The included 4 x M3 bolts and lock nuts secure the device firmly to the clip.


The clip fits standard 35 mm top-hat DIN rails as per EN 50022 / DIN EN 60715 - the most common DIN rail standard in industrial cabinets and control panels worldwide.
