M12 5 pin to DB9 marine CANopen adapter cable

M12-to-DB9 5-Pin Adapter Cable [NMEA 2000, CANopen]

Do you need to log NMEA 2000 data from boats/ships - or CANopen data from industrial machinery?

This 1.5 meter DB9 to M12 (5-pin) adapter fits most marine vessels and CANopen assets - and lets you easily connect your CANedge/CLX000 CAN logger to start recording CAN bus data.

When buying a CAN logger you can add this as an option for a 40% discount.

Regular price
50 EUR
Unit price
per
In stock | Prices ex VAT | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.

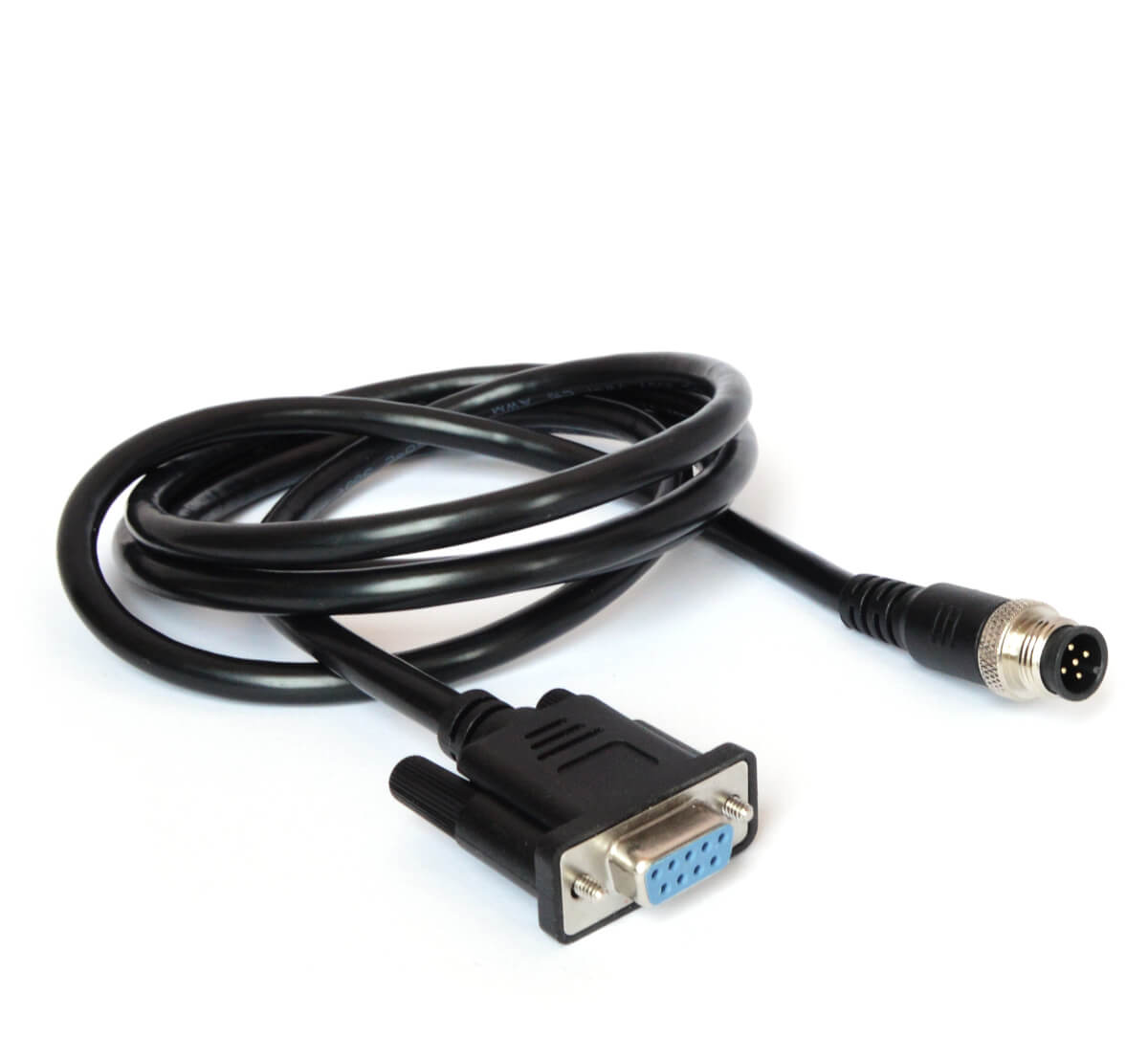

NMEA 2000 M12 5-pin DB9 adapter cable
MARINE

Suitable for NMEA 2000® maritime applications (boats, ships)

CANopen M12 5-pin adapter cable CAN bus DB9
CANOPEN

Suitable for CANopen applications (e.g. machinery)

Overmold M12 5 pin connector
OVERMOLDED

Quality overmold ensures top flexibility & durability

Solid Quality Rugged Cable AWG
SOLID CABLES

Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness

Standard CAN in Automation DB9
STANDARD DB9

Fits our CAN loggers & all adapters (CiA 303-1 DB9 pinouts)

1 Year Warranty
1Y WARRANTY

We offer a 1-year warranty on all our products




About the M12 5-pin connector cable

The DB9-M12 adapter cable is suited for use in most maritime vessels and in many industrial automation applications. The cable lets you connect your CANedge/CLX000 CAN logger directly to the CAN bus - providing access to the CAN bus, as well as providing input power/ground for your CAN logger.

For more on NMEA 2000® and CANopen, see below guides:

use cases
M12 Db9 5 Pin Connector




Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us

GENERAL
Adapter Cable Length 150 cm
Adapter DB9 Pins In accordance with CiA 303-1
Compatibility High Speed CAN Bus (ISO 11898-2) incl. e.g. NMEA 2000® and CANopen
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) female to M12 5-pin (male)
Temperature Operating temperature: -20degC to +80degC
Weight 130G



DB9-M12 adapter pinout


DB9 (female) Function M12 (male)
1 N/C
2 CAN-L 5 (NET-L)
3 GND 3 (NET-C)
4 N/C
5 N/C
6 N/C
7 CAN-H 4 (NET-H)
8 N/C
9 VCC 2 (NET-S)
M12 DB9 5 Pin Connector Pinout

Below are two use cases examples where the DB9-J1939 adapter is useful:

M12 DB9 Marine Telematics NMEA 2000

Marine telematics

Need to log NMEA 2000® data from a maritime vessel?

In marine telematics applications you may need to collect NMEA 2000® data to an SD card or to your own server. Here, the CANedge can be deployed easily with the M12-DB9 adapter cable, which matches most boat/ship CAN bus connectors. Simply connect the device to power it and start logging data. See also our marine telematics intro.

CANopen data logger

Need to diagnose rare machine errors?

If you're trying to diagnose a rare/intermittent error in your machinery, it can be useful to deploy a CANedge1 with cyclic logging to record raw CAN bus data to an SD card. Here, the M12-DB9 adapter can be useful as it is directly compatible with several CANopen industrial machinery applications. See also our CANopen data logger intro or our predictive maintenance guide.

Request J1939 PGN Data from Bus Fleet



The M12-DB9 adapter fits several maritime and industrial CAN busapplications, but you should always verify what connector is used in your specific application up-front, including whether the pin-out is compatible.
