WATERPROOF
The DTM06-12SA connector ensures a waterproof connection with our IP67 enclosure
PLUG & PLAY
Expose the CANedge CH1/CH2 outside your IP67 enclosure with minimal effort
OVERMOLDED
Quality DB9 overmold ensures top flexibility & durability in harsh environments
SOLID CABLES
Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness
1Y WARRANTY
We offer a 1-year warranty on all our products
About the adapter cable

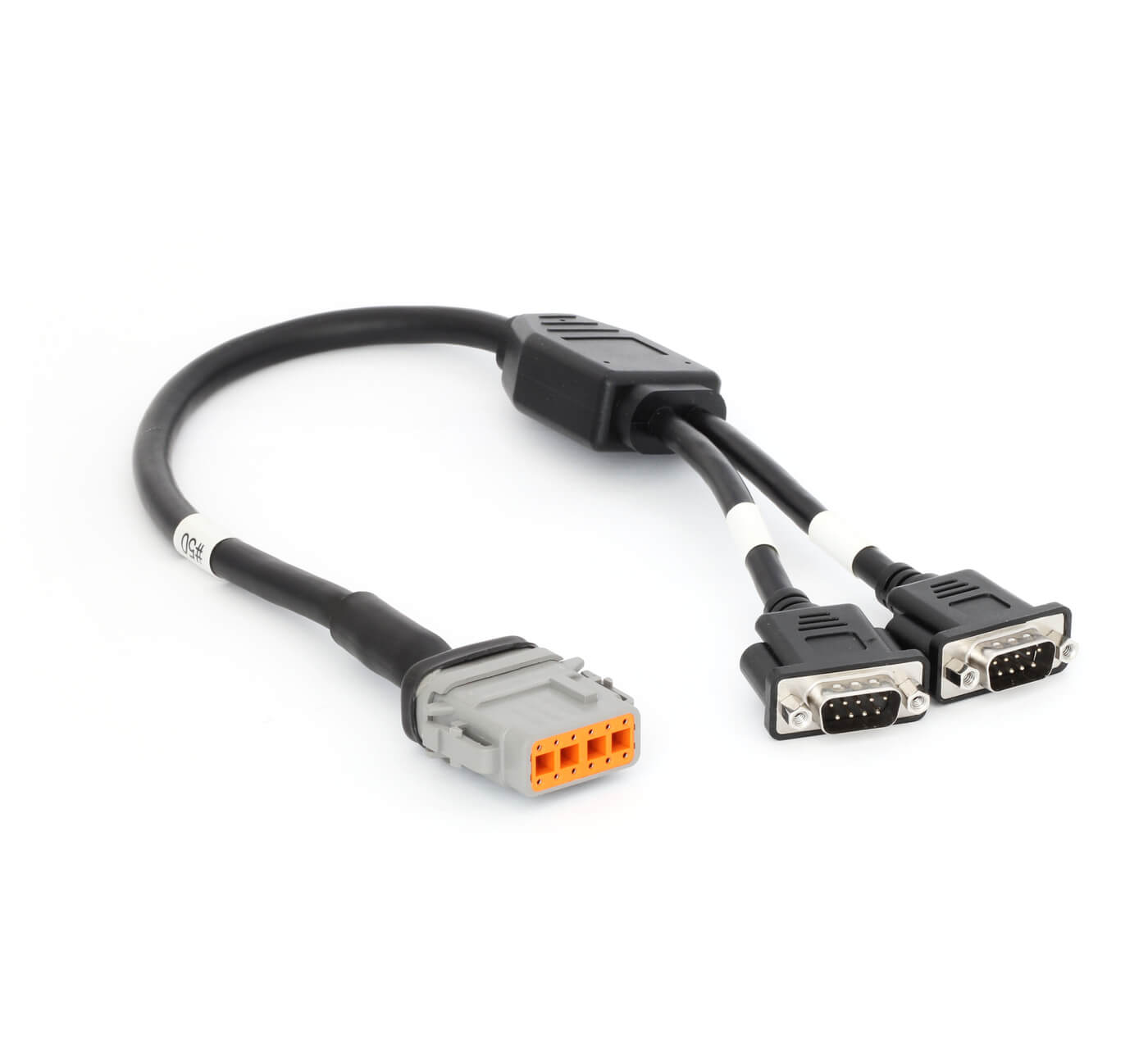

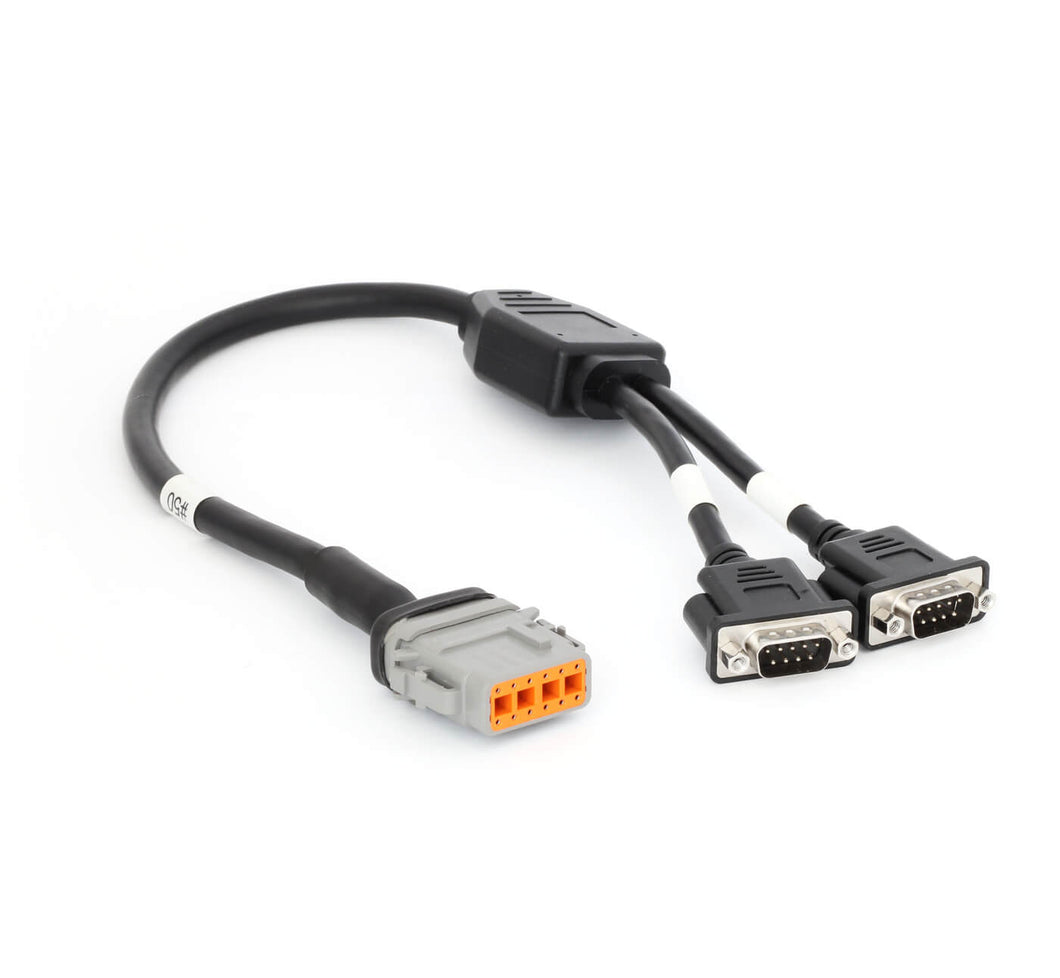

The DTM06-12SA-DB9/DB9 is designed specifically for use with the CANedge IP67 enclosure, which allows you to easily make your devices dust-tight and waterproof.
The IP67 enclosure exposes an IP67 DTM06-12SA connector and you can easily create your own custom wiring harness e.g. using our DTM06-12SA connector kit. However, in many use cases you will want to protect the CANedge, while still being able to use our wide range of DB9 adapter cables. This DTM06-12SA-DB9/DB9 adapter lets you achieve exactly that by exposing the CANedge CH1/CH2 connectors/pinout for plug & play connections.
Check out our tech specs, use cases or FAQ - or buy now!
Do you have any questions?
Contact us| GENERAL | |
|---|---|
| Adapter Cable Length | 50 cm |
| Adapter DB9 Pins | In accordance with CiA 303-1 |
| Compatibility | High Speed CAN Bus (ISO 11898-2) incl. e.g. CAN FD, SAE J1939, NMEA 2000 |
| Cable Thickness | 22 AWG (0.50 mm2) |
| Connectors | 9-pin D-sub (DB9) male to IP67 DTM06-12SA (female) |
| Temperature | Operating temperature: -20degC to +80degC |
| Weight | 180G |
DTM06-12SA-DB9/DB9 pinout
| Function | DB9 Male CH1 | DB9 Male CH2 | DTM06-12SA |
| 5V Supply Output | 1 | 1 | |
| LIN2 VBAT | 9 | 2 | |
| GND | 3, 6 | 3, 6 | 3 |
| GND | 4 | ||
| VCC | 9 | 5 | |
| VCC | 9 | 6 | |
| CAN1-L | 2 | 7 | |
| CAN1-H | 7 | 8 | |
| LIN1 Data | 4 | 9 | |
| CAN2-L | 2 | 10 | |
| CAN2-H | 7 | 11 | |
| LIN2 Data | 4 | 12 |
Below are use cases examples where the DTM06-12SA-DB9/DB9 adapter is useful:
Mixed fleet data logging & testing
Need to log J1939 data from mixed heavy-duty vehicle fleets?
In many aftermarket telematics use cases it is necessary to deploy CANedge devices across a fleet of mixed heavy-duty vehicles, often requiring a number of different adapter cables. In such cases it can be highly practical to deploy the CANedge in the IP67 enclosure with the DTM06-12SA-DB9/DB9 adapter as it allows for leveraging the full range of DB9 adapter cables available for the CANedge, without having to create custom wiring harnesses for multiple different vehicle connectors.
While the DTM06-12SA connector is IP67, regular DB9 connectors are not waterproof or dust-tight. As such, consideration should be made as to how the device is installed when using this cable. For the DB9 connectors themselves, short/medium-term exposure to light dust and humidity won't necessarily cause practical issues - while for longer-term installations it is recommended to either protect the DB9 connectors or monitor the cables for potential replacement over time.
In our experience across thousands of deployments, it takes a lot of exposure to actually damage the DB9 connectors themselves and disrupt the communication with the CANedge. In contrast, exposure to dust/humidity can fairly quickly damage electronic devices like the CANedge if it is not properly protected.
