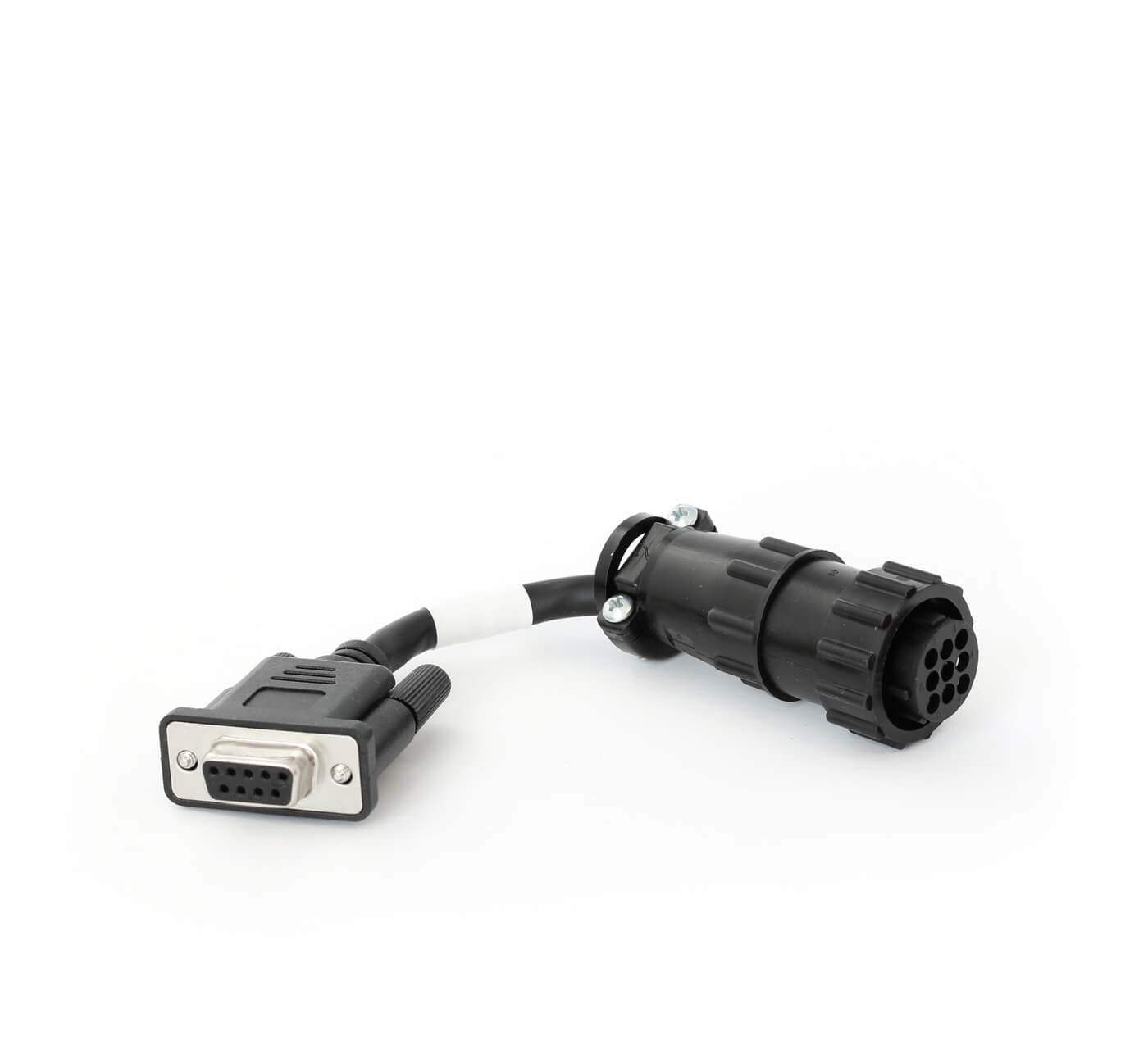

In-Cab Adapter Cable Tractor

In-Cab-to-DB9 Adapter Cable, LBS [Tractors, ISOBUS]

Do you need to log/stream ISOBUS data from agricultural vehicles like tractors/harvesters?

This in-cab-DB9 (LBS) adapter fits most tractors and lets you easily connect your CANedge CAN logger or CANsub CAN interface to start logging or streaming ISOBUS data.

The cable connects VCC, GND and CAN 1 of the in-cab connector to enable read-access only (while CAN 2 enables read/write access to the same bus).

Need to use this with a CANsub.4/CANmod.router? See our DB25-4xDB9 adapter cable.

When buying a CAN logger/interface you can add this as an option for a 40% discount.

50 EUR
SKU: A039 | in stock | prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.


GENERAL
Adapter Cable Length 15 cm (incl. connectors)
Connectors In-cab (female), 1 x DB9 (female)
Temperature Operating temperature: -20degC to +80degC
Weight 60G
Color Black



Adapter pinout


In-Cab Function DB9 (female)
2 CAN 1 L 2
4 CAN 1 H 7
7 VCC 9
9 GND 3
ISOBUS LBS in-cab adapter cable pinout
