DB9 DC Power Splitter Cable

DB9 to DB9/DC Power Splitter

Need to log CAN bus data - with an external power supply?

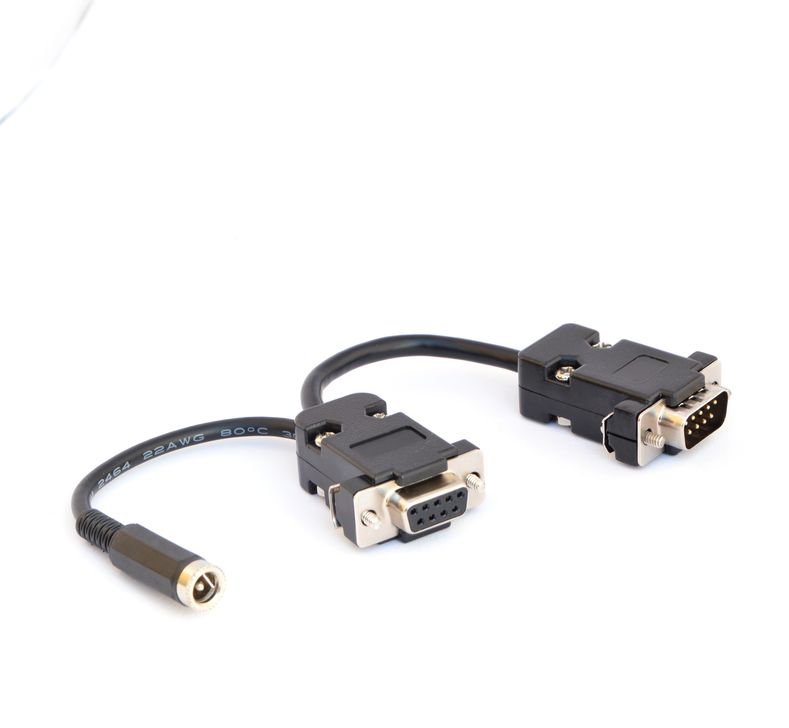

With the DB9-to-DB9/DC power splitter, you'll be able to power e.g. your CAN logger via a power outlet, battery or e.g. cigarette receptacle. The DC female connector is a standard 5.5 mm (ID, inner diameter) x 2.1 mm (CPD, center pin diameter).

The adaptor is great for test setups, machine logging or vehicles where no power is provided by the DB9 connector (or you prefer not to use the CAN bus power supply).

Buy now - or learn more below!

Regular price
30 EUR
Unit price
per
In stock | Prices ex VAT | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.




Easily Power DC Connector CAN Bus
EASILY POWER

DC connector offers plug & play power source options

Control Power On Off CANedge
CONVENIENT

Power your logger by your desk for e.g. ECU development

Mobile Battery Pack CAN Logging
MOBILE

Use your logger across multiple assets on-the-go via battery packs

Compact Small Tiny Adapter Cable
COMPACT

The DB9-DB/DC adapter is compact, light-weight and robust

Standard CAN in Automation DB9
STANDARD DB9

Works with most CAN adapters (CiA 303-1 compatible pinouts)

1 Year Warranty
1Y WARRANTY

We offer a 1-year warranty on all our products




About the DB9-DC adapter

The DB9-DB9/DC adapter lets you power your CANedge/CLX000 via an external power supply - e.g. if no power is available via the CAN connector.

The DC connector is 5.5 mm (ID) x 2.1 mm (CPD), meaning that it fits most standard power supply options.

Examples of potential power sources include:

use cases
DB9 DBC Power Splitter External Source Car Battery




Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us

Note: Ensure that the GND of the devices are connected (between your application and the device/splitter). If questions contact us.

GENERAL
Adapter Cable Length 15 cm (both cables)
Adapter DC Connector 5.5 mm (ID) x 2.1 mm (CPD)
Adapter Pins In accordance with CiA 303-1
Compatibility High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) male to female
Temperature Operating temperature: -20degC to +80degC
Weight 30G



Adapter pinout


DB9 (female) Function DB9 (male) DC Connector
1 N/C
2 CAN-L 2
3 GND 3 Outer
4 N/C
5 N/C
6 N/C
7 CAN-H 7
8 N/C
9 VCC N/C Center

Below are two use case examples where the power splitter can be applied:

Industrial Automation CAN Bus Data Logger

Mobile battery pack as power source

Need to log ad hoc data from production machines?

In many industrial automation cases, a machine based on CAN will have a DB9 connector port. However, in some cases only the CAN L/H pins will be connected in the DB9 pinout - and no power will be supplied for the CAN logger. In this scenario, you'll need to supply your device with external power. Here, the DB9-DB9/DC splitter is great for e.g. adding power via a small battery pack.

Quick desktop configuration & testing

Need to power your CAN logger during desktop testing?

In desktop development, you'll sometimes have CAN based prototype modules (e.g. vehicle ECUs) that you want to log data from via the CANedge/CLX000. If there is no built-in power supply in the module, you can use the adapter to e.g. power your CAN logger via a wall power outlet using standard transformers. This way you can both stream and log data straight from your desktop.

ECU Prototype Vehicle Development CAN Logger



Some users like to configure their CANedge2 by their desk and test the WiFi connection from there.

This can be done without a CAN bus by using this adapter and a power supply. In turn, this lets you e.g. test the upload of the CANedge2 Device File and Configuration File. For e.g. fleet management where you may need to deploy large volumes of CANedge2 units, this can be a convenient solution to ensure everything is set up correctly before heading to the field.
