2-in-1 antenna (3G/4G LTE + GNSS)

2-in-1 antenna (3G/4G LTE + GNSS)

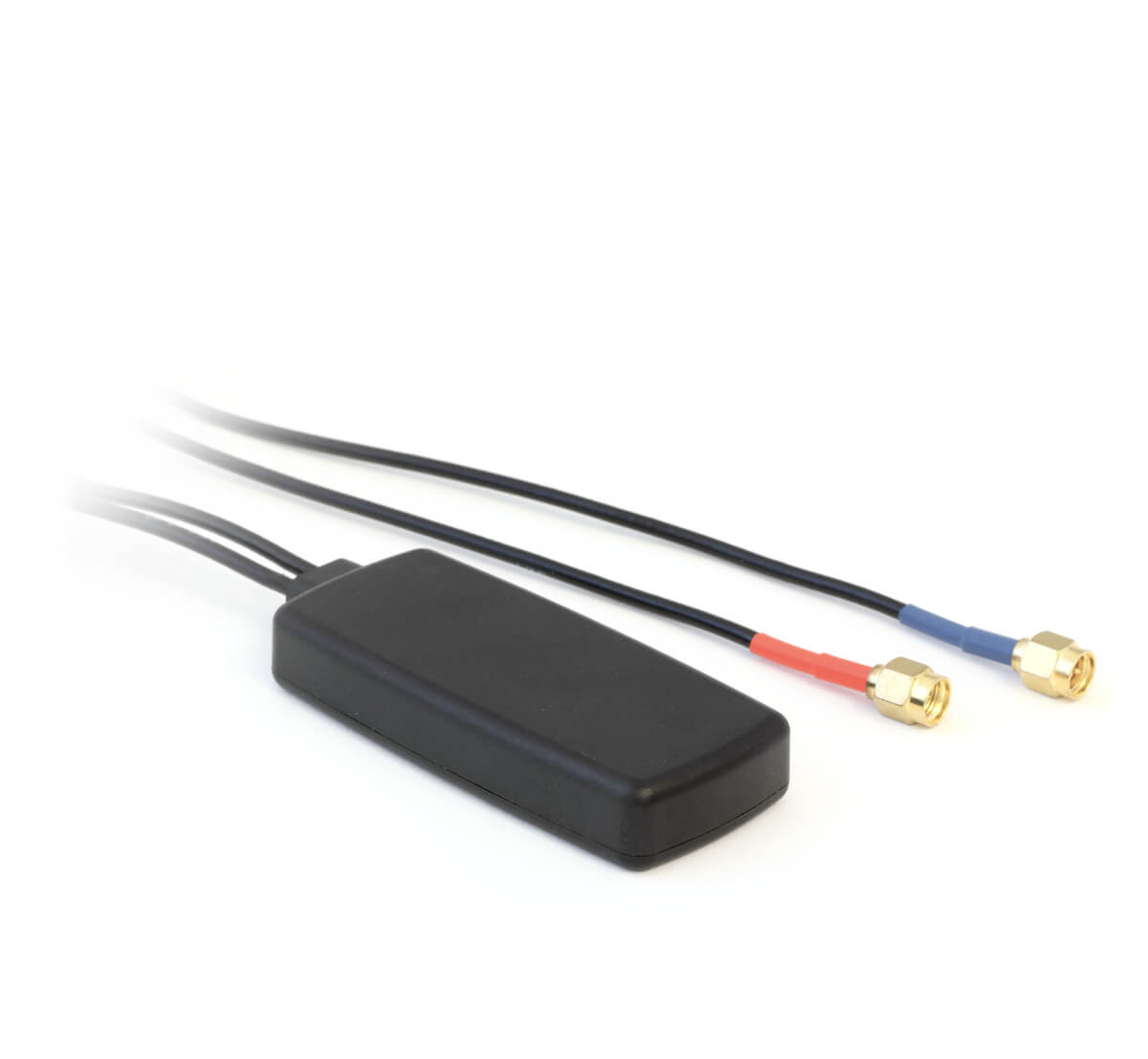

This 2-in-1 antenna covers 3G/4G (698-960 MHz / 1710-2170 MHz / 2500-2700 MHz) and GPS/GLONASS/Galileo (1575-1606 MHz). It comes in a compact 83 x 35 x 13.3 mm IP67 housing with adhesive mounting.

The antenna provides two 3 meter cables with SMA connectors (red: LTE, blue: GNSS), enabling flexible deployments.

When you purchase the CANedge3 this antenna can be selected as an option.

Regular price
20 EUR
Unit price
per
In stock | Prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.



ELECTRICAL (4G LTE)
Frequency range 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz
Frequency bands 700/850/900 MHz, 1700/1800/1900/2100 MHz, 2600 MHz
Efficiency 53%, 49%, 25%
VSWR 1.8:1, 1.3:1, 2.0:1
Peak gain 2.4 dBi, 1.3 dBi, 0.4 dBi
Average gain -2.7 dB, -3.0 dB, -5.9 dB
Impedance 50 Ohm
Polarization Linear
Radiation Omni-directional
ELECTRICAL (GNSS)
Frequency range 1575.42 MHz, 1598-1606 MHz
Frequency bands 1575 MHz, 1602 MHz
Return loss Below -15 dB
VSWR Below 1.4:1 dB
Impedance 50 Ohm
Radiation Pattern Hemispherical
Patch size 25 x 25 x 4 mm
Polarization RHCP
Saw Filter Pre filter
Active Gain 28 dB @ 2.7 V
Noise Figure 1.5 dB Typ
Voltage 1.5 - 3.6 V
Current 9 mA Typ
Power Consumption 24.3 mW Typ
ESD Protection 2kV
MECHANICAL
Dimensions 83 x 35 x 13.3 mm
Cable length 3 meters (2 cables)
Connector 2 x SMA male (red: WiFi, blue: GNSS)
IP rating 67
Operating temperature -40 degC to +85 degC
Mounting type Adhesive mount (mounting patch included)
Radome Type ABS UV Stable
4G LTE 2 in 1 antenna dimensions

4G LTE GNSS 2 in 1 antenna radiation
