GPS Antenna

GPS Antenna

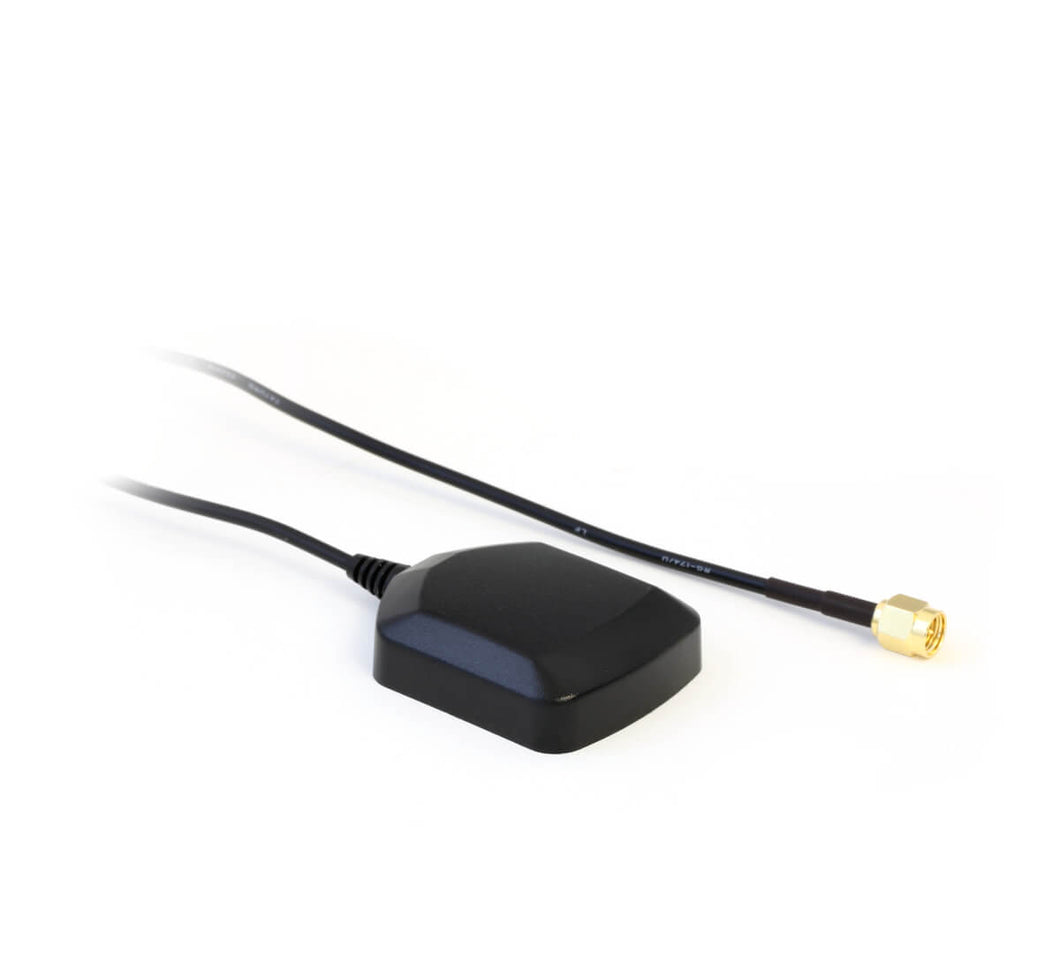

This GPS antenna measures 48 x 40 x 13 mm with a 5 meter cable and magnetic mount - learn more below.

When you purchase the CANmod.gps, this active GPS antenna is included in the default price.

Regular price
50 EUR
Unit price
per
In stock | Prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.



GENERAL
Brand u-blox
ELECTRICAL
Frequency range 1575 +/- 3 MHz (GPS)
VSWR max 2.0
Bandwidth min. 20 MHz
Impedance 50 Ohm
Peak gain 4 dBiC min. (on 7 x 7 cm ground plane)
Polarization RHCP
Amplifier gain typ. 29 dB (without cable)
Noise figure typ. 0.9 dB
Output VSWR max. 2.0
SMA VSWR Straight: 1.3 max
DC Voltage 2.7 V DC to 5.5 V DC
DC Current typ 8.5 mA, +/- 4.5 mA
MECHANICAL
Mounting Magnetic mount
Dimensions 48 x 40 x 13 mm (antenna)
Cable length 5 meter
IP rating 56
Operating temperature -40 degC to 85 degC
Vibration Sine sweep,1G (0-P),10-150-10 Hz each axis
Humidity 40%~95% RH
Vibration Sine sweep,1G (0-P),10-150-10 Hz each axis
GPS antenna dimensions
