4G LTE antenna

4G LTE antenna

When you purchase the CANedge3 this antenna is included in the default price.

The 4G LTE omni-directional antenna supports the frequency bands 690-960 Mhz and 1710-2700 Mhz with high efficiency and gain.

The antenna is 82 mm with a tilt-and-swivel SMA connector - learn more below.

Regular price
10 EUR
Unit price
per
In stock | Prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'PDF Quotation (Advance Payment)'. Once you submit your request, we will send the PDF quotation in <24 hours.

If you prefer, you can of course also contact us.



ELECTRICAL
Frequency range 690-960 / 1710-2700 MHz
VSWR 1:3.5
Impedance 50 Ohm
Polarization RHCP
Gain 3 dBi +/- 1
Polarization Vertical
Radiation Omni-directional
IP rating 63
MECHANICAL
Height 82 mm
Max diameter 12 mm
Min diameter 6 mm
Connector SMA male

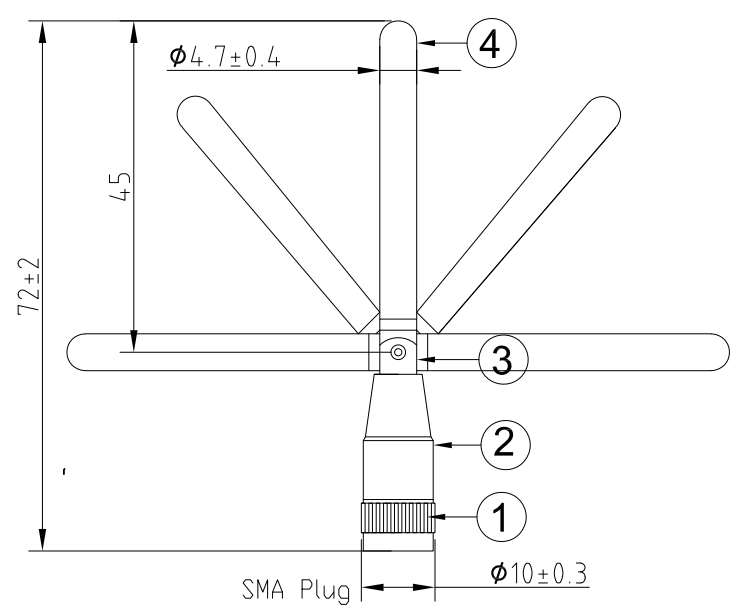

4G LTE antenna dimensions

4G LTE antenna radiation 690-960
4G LTE antenna radiation 1710-2700
